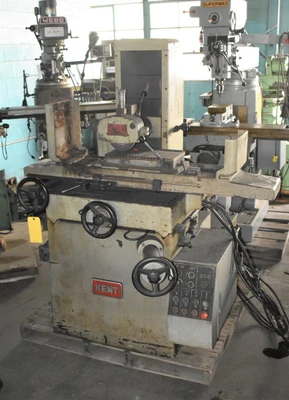

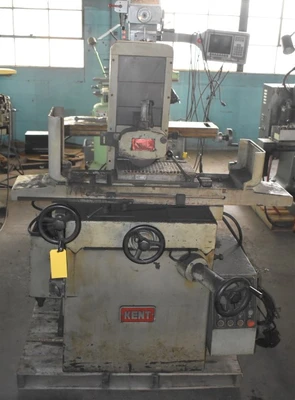

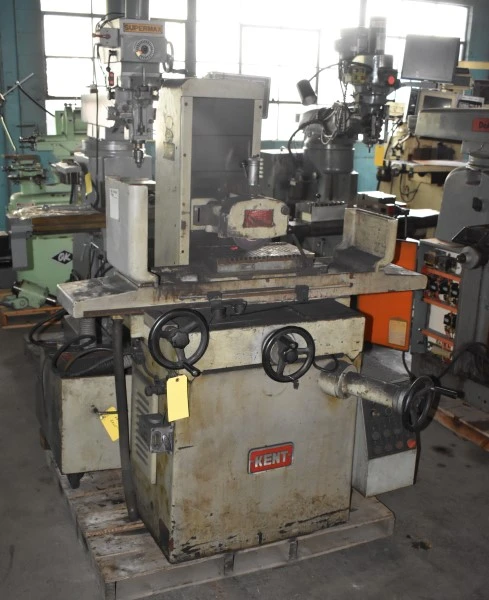

8" X 18" KENT “KGS250AH” HYDRAULIC-FEED HORIZONTAL-SPINDLE SURFACE GRINDER w/MAGNETIC CHUCK - OVERHEAD WHEEL DRESSER

Table Working Surface, W x L 8" x 18"

Grinding Width Capacity, Maximum 8"

Grinding Length Capacity, Maximum 18"

Height Spindle Center to Table, Maximum 16"

Table Longitudinal, Power 20"

Table Cross Travel 10"

Grinding Wheel Diameter, Standard 7"

Grinding Wheel Width, Standard 0.5"

Grinding Wheel Hole Diameter 1.25"

Grinding Spindle Speed 3480 RPM

Table Longitudinal Feeds, Range 16 to 67 FPM

Table Cross In-Feeds, Range .04 to .3 IPR

Floor Space Required, L x D 6' x 4'7"

Weight, Approximately 2860 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 8" X 18"
Grinding width capacity, maximum: 8"
Grinding length capacity, maximum: 18"
Height spindle center to table, maximum: 16"
Table longitudinal, power: 20"
Table cross travel: 10"
Grinding wheel diameter, standard: 7"
Grinding wheel width, standard: 0.5"
Grinding wheel hole diameter: 1.25"
Grinding spindle speed: 3480 RPM
Table longitudinal feeds, range: 16 TO 67 FPM
Table cross in-feeds, range: .04 TO .3 IPR
Floor space required, l x d: 6' X 4'7"
Weight, approximately: 2860 LBS
