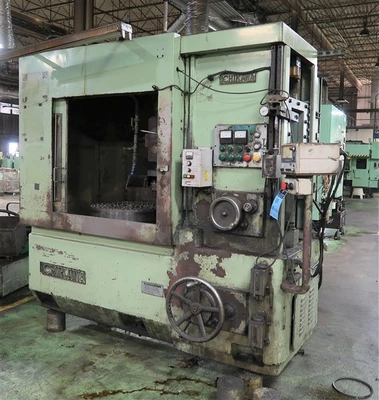

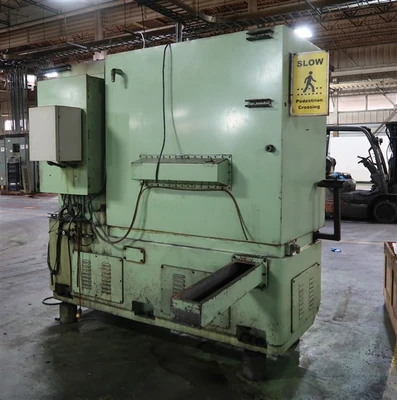

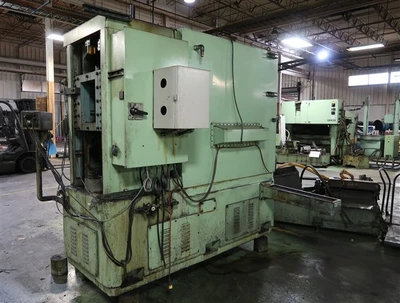

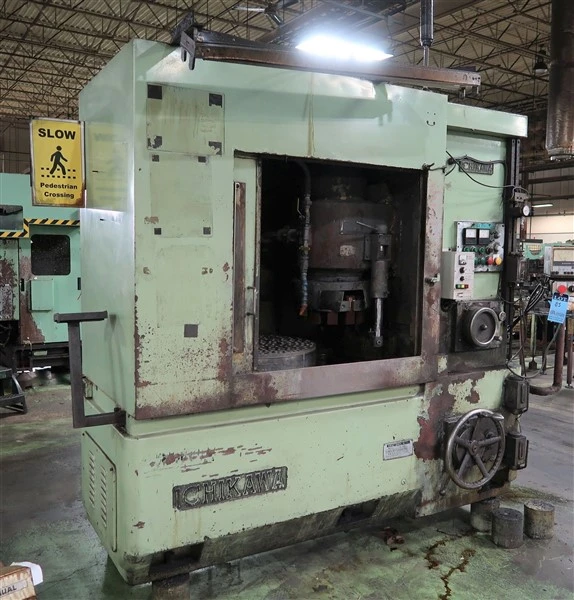

24" ICHIKAWA “ICB240” VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/MAGNETIC CHUCK - SEGMENTED GRINDING WHEEL - 14 HP SPINDLE MOTOR

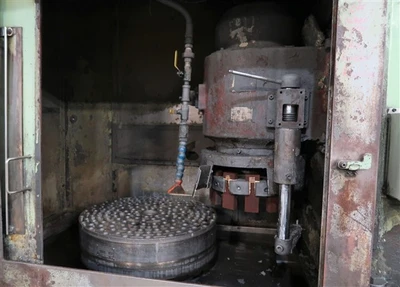

Magnetic Chuck, Diameter 24"

Swing Between Coolant-Guards 31.5"

Height Under Grinding Wheel, Maximum 10.63"

Table Traverse 12.6"

Grinding Wheel Diameter, Maximum 13.7"

Segment Size, W x T x L 2" x 1" x 4.73"

Chuck Speeds, Range 2.5 to 27 RPM

Feeds, Range .000079 to .0015 IPM

Rapid Traverse Rate 13 IPM

Spindle Motor, KW Rating 10 KW

Floor Space Required, W x D 83" x 73.25"

Overall Height 73.25"

Weight, Approximately 7200 LBS

F.O.B. OUR WAREHOUSE
Magnetic chuck, diameter: 24"
Swing between coolant-guards: 31.5"
Height under grinding wheel, maximum: 10.63"
Table traverse: 12.6"
Grinding wheel diameter, maximum: 13.7"
Segment size, w x t x l: 2" X 1" X 4.73"
Chuck speeds, range: 2.5 TO 27 RPM
Feeds, range: .000079 TO .0015 IPM
Rapid traverse rate: 13 IPM
Spindle motor, kw rating: 10 KW
Floor space required, w x d: 83" X 73.25"
Overall height: 73.25"
Weight, approximately: 7200 LBS
