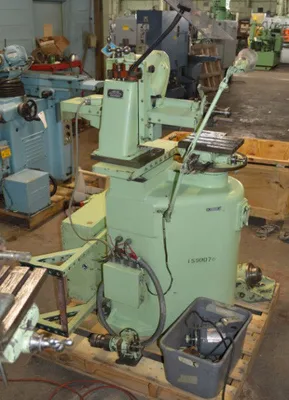

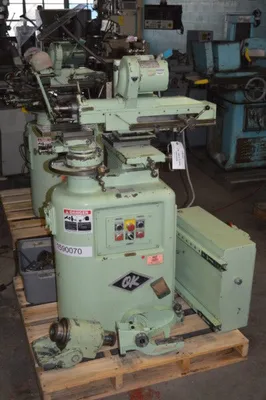

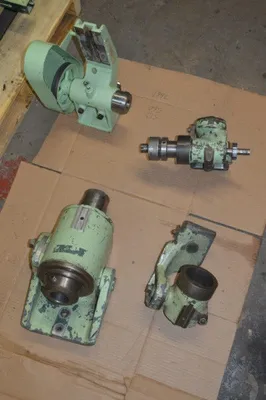

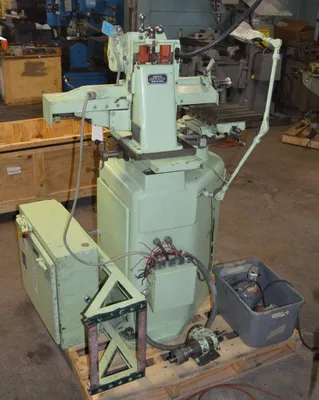

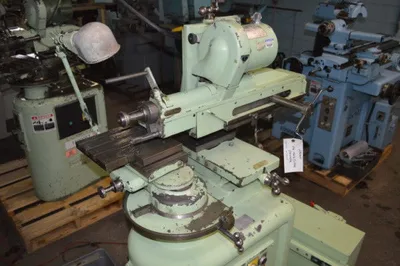

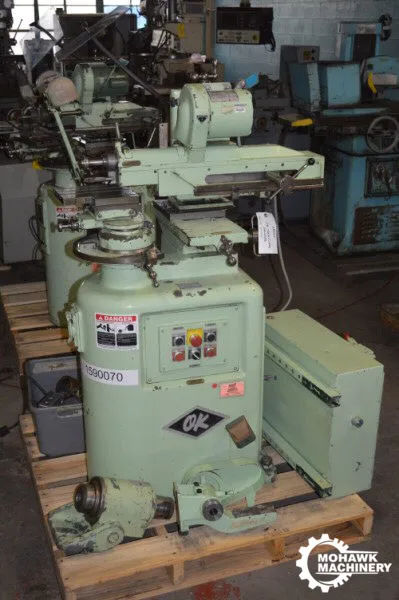

R8 OK TOOL AND RADIUS GRINDER w/(1) MOTORIZED & (2) MANUAL WORKHEADS

Flute Length, Maximum 10"

Mill Diameter Over Table, Maximum 9.5"

Mill Diameter In Front Table, Maximum 12"

Mill Diameter 4" In Front Spindle, Maximum 7"

Work Table Size 6-7/16" x 10-7/8"

Wheel Spindle Axial Travel 10"

Wheel Spindle Vertical Adjustment 5-3/8"

Wheel Spindle Cross Travel, Total 6-1/4"

Wheel Spindle Cross Travel, Rack & Pinion Feed 4"

Wheel Spindle Cross Travel, Fine Adjustment 2-1/4"

Work Table Graduated Swivel Range 235-DEGREES

Work Table Adjustment Toward & From Swivel Center 3-1/4"

Work Table Cross Adjustment 1-1/4"

Wheel Spindle Speed 5000 RPM

Wheel Motor Horsepower 1/3 HP

Floor Space Required 55" x 35"

Overall Height 63"

Weight Approximately 950 LBS

NOTE: THIS MACHINE APPEARS TO BE IN VERY GOOD CONDITION
AS TAKE FROM AEROSPACE FACILITY.

PRICE: F.O.B. OUR WAREHOUSE
Flute length, maximum: 10"
Mill diameter over table, maximum: 9.5"
Mill diameter in front table, maximum: 12"
Mill diameter 4" in front spindle, maximum: 7"
Work table size: 6-7/16" X 10-7/8"
Wheel spindle axial travel: 10"
Wheel spindle vertical adjustment: 5-3/8"
Wheel spindle cross travel, total: 6-1/4"
Wheel spindle cross travel, rack & pinion feed: 4"
Wheel spindle cross travel, fine adjustment: 2-1/4"
Work table graduated swivel range: 235-DEGREES
Work table adjustment toward & from swivel center: 3-1/4"
Work table cross adjustment: 1-1/4"
Wheel spindle speed: 5000 RPM
Wheel motor horsepower: 1/3 HP
Floor space required: 55" X 35"
Overall height: 63"
Weight approximately: 950 LBS
