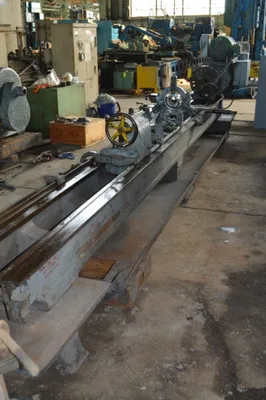

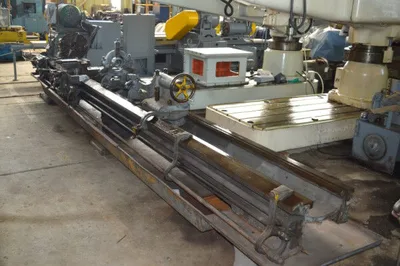

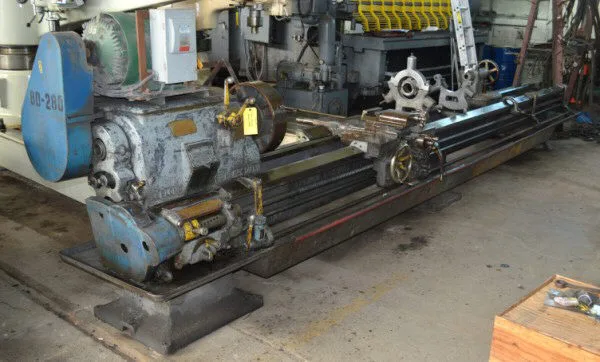

21/22.5" X 198" LEBLOND “21” HEAVY-DUTY ENGINE LATHE w/18” 4-JAW CHUCK - POWER RAPID TRAVERSE - STEADY & FOLLOW RESTS

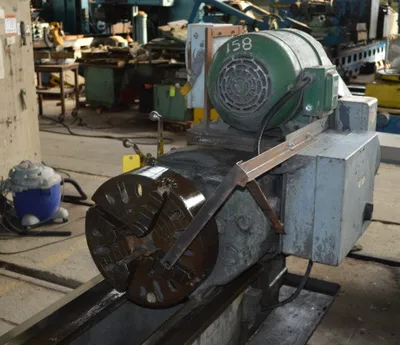

18" 4-JAW CHUCK
(1) STEADY REST
(1) FOLLOW REST
POWER RAPID TRAVERSE

CATALOG SPECIFICATONS:

Hole Thru Spindle 2"

Swing Over Bed Ways, Rated 21"

Swing Over Bed Ways, Actual 22.5"

Swing Over Cross-Slide 15"

Distance Between Centers 198"

(16) Spindle Speeds, Range 10 to 300 RPM

(10) Longitudinal Carriage Feeds .002 to .060 IPR

(45) Thread Changes, Range 1 to 30 TPI

Motor Horsepower/RPM 15 HP/1750 RPM

Electrical System 220-440/3/60

PRICE: F.O.B. OUR WAREHOUSE
Hole thru spindle: 2"
Swing over bed ways, rated: 21"
Swing over bed ways, actual: 22.5"
Swing over cross-slide: 15"
Distance between centers: 198"
(16) spindle speeds, range: 10 TO 300 RPM
(10) longitudinal carriage feeds: .002 TO .060 IPR
(45) thread changes, range: 1 TO 30 TPI
Motor horsepower/rpm: 15 HP/1750 RPM
Electrical system: 220-440/3/60
