25" X 240/96" (20'/8') LODGE & SHIPLEY "RXE2516" DUAL-SIDE HOLLOW-SPINDLE OIL COUNTRY ENGINE BORING LATHE w/12-5/8” HOLE THRU SPINDLE - (2) 24” CHUSMAN 4-JAW HOLLOW SPINDLE CHUCKS
Have one to sell?
$89,500.00 USD
ConditionUsed
1 available

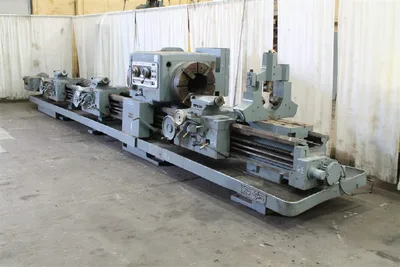

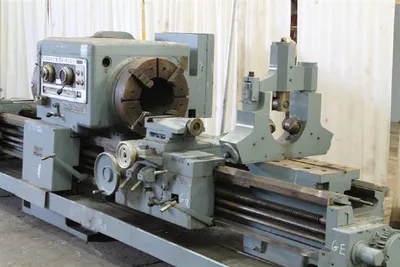

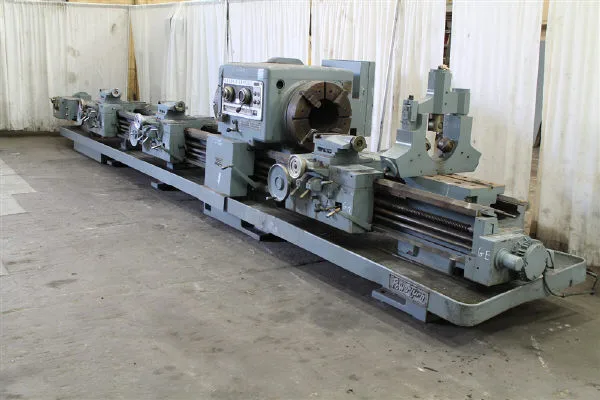

25" X 240/96" (20'/8') LODGE & SHIPLEY "RXE2516" DUAL-SIDE HOLLOW-SPINDLE
ENGINE/BORING LATHE

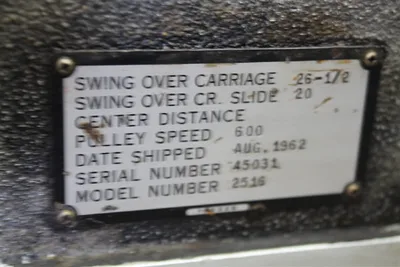

NEW 1962, SERIAL NO 45031, MODEL RXE2516,
LEFT HAND SIDE LATHE BED WITH 20' CENTER DISTANCE
RIGHT HAND SIDE LATHE BED WITH 8' CENTER DISTANCE

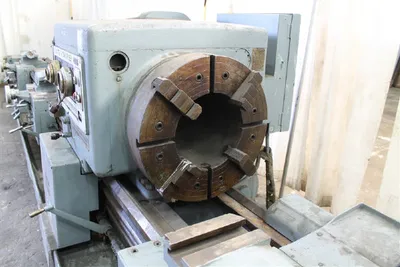

(2) 24" 4-JAW CHUCKS W/12-5/8" BORE

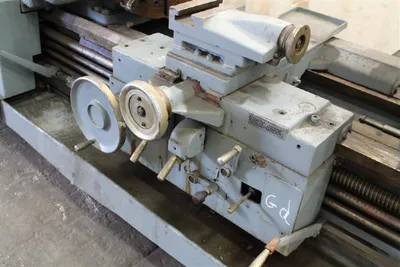

(2) CARRIAGES ON LEFT HAND SIDE OF BED

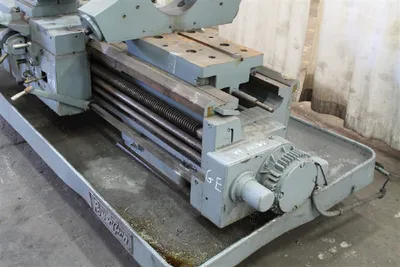

(1) REGULAR LATHE CARRIAGE ON RIGHT HAND SIDE OF BED

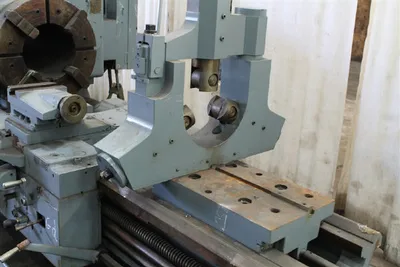

13-1/4" 3-POINT ROLLER STEADY REST
POWER RAPID TRAVERSE - 20" A1 SPINDLE NOSE
Hole Thru Spindle 12-5/8"
Swing Over Bed Ways, Rated 25"
Swing Over Bed Ways, Actual 25.5"
Swing Over Cross-Slide 18"
Distance Between Centers 240"
Distance Between Centers 96"
(24) Spindle Speeds, Range 6 to 338 RPM
(55) Carriage Longitudinal Feeds .0025 to .160 IPR
(55) Thread Changes, Range 1 to 64 TPI
Main Motor, Horsepower 25 HP
NOTE: THIS MACHINE APPEARS TO BE IN VERY GOOD
CONDITION AS TAKEN FROM GOVERNMENT STAND-BY STORAGE.
PRICE: F.O.B. OHIO (TOLEDO
Hole thru spindle: 12-5/8"
Swing over bed ways, rated: 25"
Swing over bed ways, actual: 25.5"
Swing over cross-slide: 18"
Distance between centers: 96"
(24) spindle speeds, range: 6 TO 338 RPM
(55) carriage longitudinal feeds: .0025 TO .160 IPR
(55) thread changes, range: 1 TO 64 TPI
Main motor, horsepower: 25 HP
