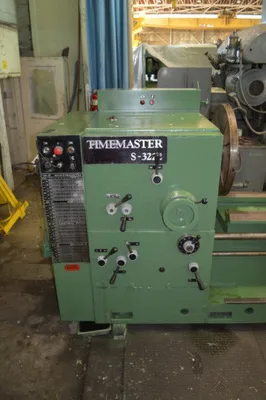

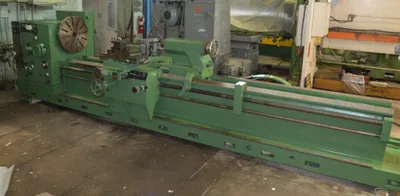

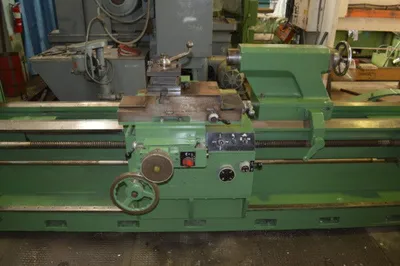

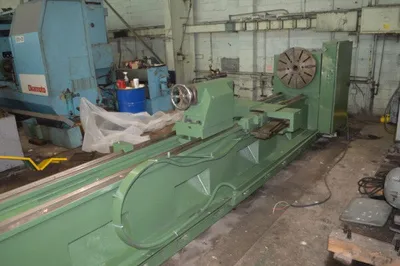

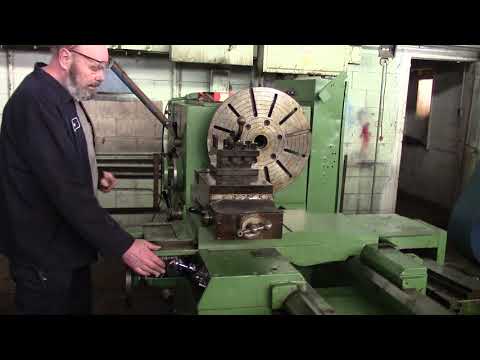

32"/45" X 160" TIMEMASTER “S3222 HEAVY-DUTY" GAP-TYPE ENGINE LATHE w/TAPER - INCH-METRIC THREADING - 25” FACEPLATE - 25 HP

Hole Thru Spindle 5"

Swing Over Bed Ways, Rated 32"

Swing thru Gap 44.78"

Swing Over Cross-Slide 22"

Distance Between Centers 160"

Gap Length 18"

Compound-Rest Travel 12"

Cross-Slide Travel 22"

Tailstock, Quill Diameter 4.75"

Tailstock, Quill Travel 16.5"

Tailstock, Spindle Taper #6 MT

(24) Spindle Speeds, Range 11 to 800 RPM

(264) Carriage Longitudinal Feeds .0015 to .205 IPR

(264) Cross Feeds, Range .0008 to .102 IPR

(66) Thread Changes, Range 27/32 to 52 TPI

(66) Metric Threads, Range 1 to 52 MM

(66) Modular Threads, Range .25 to 13

(66) Diametral Pitch, Range 3-3/8 to 208

Main Motor, Horsepower 25 HP

Weight, Approximately 16800 LBS

PRICE: F.O.B. OUR WAREHOUSE
Hole thru spindle: 5"
Swing over bed ways, rated: 32"
Swing thru gap: 44.78"
Swing over cross-slide: 22"
Distance between centers: 160"
Gap length: 18"
Compound-rest travel: 12"
Cross-slide travel: 22"
Tailstock, quill diameter: 4.75"
Tailstock, quill travel: 16.5"
Tailstock, spindle taper: #6 MT
(24) spindle speeds, range: 11 TO 800 RPM
(264) carriage longitudinal feeds: .0015 TO .205 IPR
(264) cross feeds, range: .0008 TO .102 IPR
(66) thread changes, range": 27/32 TO 52 TPI
(66) metric threads, range: 1 TO 52 MM
(66) modular threads, range: .25 TO 13
(66) diametral pitch, range: 3-3/8 TO 208
Main motor, horsepower: 25 HP
Weight, approximately: 16800 LBS
