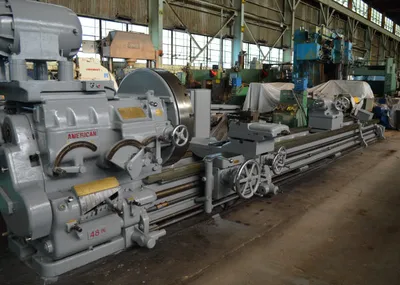

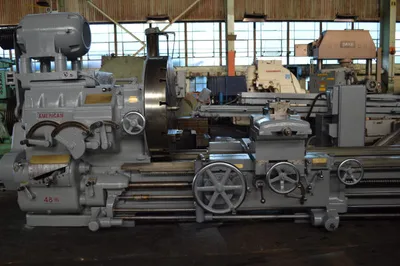

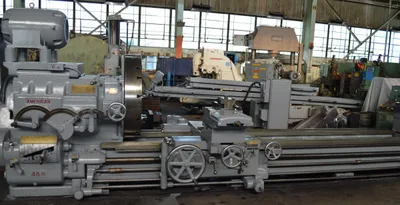

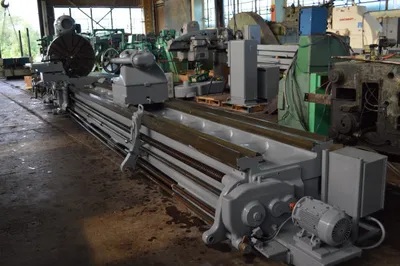

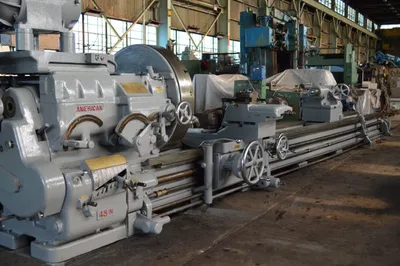

48"/50" X 300" (25') AMERICAN "SUPER-PRODUCTIVE 48" ENGINE LATHE w/48” FACE PLATE - POWER RAPID TRAVERSE - THREADING DIAL

48"/50" X 300" (25') AMERICAN "SUPER-PRODUCTIVE 48" ENGINE LATHE
SERIAL NO 72705-52, SERIES "SUPER-PRODUCTIVE 48"

EQUIPPED WITH:
48" T-SLOTTED FACE PLATE
THREADING DIAL
POWER RAPID TRAVERSE

CATALOGUE SPECIFICATIONS:
Swing Over Bed Ways, Rated 48"
Swing Over Bed Ways, Actual 50"
Swing Over Cross-Slide 35.5"
Distance Between Centers 300" (25')
Hole thru Spindle 2-5/8"
Tailstock Spindle Diameter 9.5"
Tailstock Spindle Travel 20"
Tailstock, Spindle Taper #6 MT
Spindle Speeds, Range .63 to 163 RPM
Carriage Longitudinal Feeds, Range .006 to .338 IPR
Threading Range .5 to 28 TPI
Main Motor, Horsepower 50 HP
Electrical System 440/3/60
Floor Space Required, L x D 35' x 6'
Weight, Approximately 65000 LBS

PRICE: F.O.B. OUR WAREHOUSE
