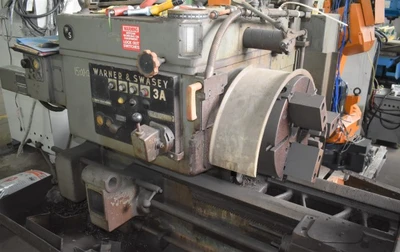

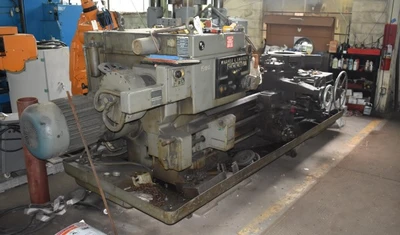

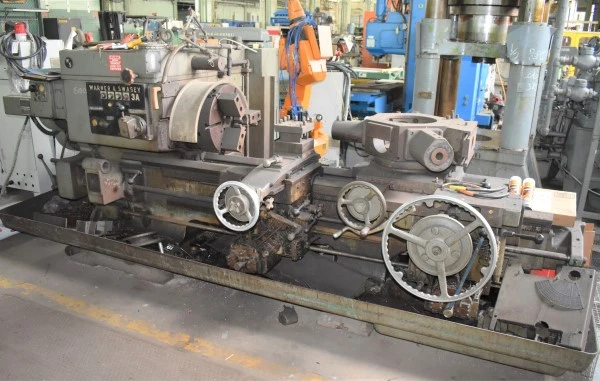

3A WARNER & SWASEY "SQUARE-HEAD" HEAVY-DUTY SADDLE-TYPE TURRET LATHE W/CROSS-SLIDING TURRET (PARTS MACHINE)

Hole Thru Spindle 4.5"

Chuck Diameter 21"

Swing Over Bed Ways 24.5"

Swing Over Carriage Wings 23.5"

Swing Over Cross-Slide 18"

Carriage Longitudinal Travel (Z-Axis) 51"

Cross-Slide Cross Travel (X-Axis) 14.375"

Turret Longitudinal Travel (Z-Axis) 51"

Spindle-Face to Turret, Maximum 59"

Spindle Speeds, Range 24 to 851 RPM

Carriage Longitudinal Feeds (Z-Axis) .005 to .167 IPM

Cross-Slide Cross Feeds (X-Axis) .0025 to .167 IPM

Turret Longitudinal Feed (Z-Axis) .005 to .167 IPM

Spindle Motor, Horsepower/RPM 40/20 HP

Overall Dimensions, L x D 16'1" x 7'0"

Weight, Approximately 15500 LBS

PRICE: F.O.B. OUR WAREHOUSE

THIS IS A PARTS MACHINE ONLY
Hole thru spindle: 4.5"
Chuck diameter: 21"
Swing over bed ways: 24.5"
Swing over carriage wings: 23.5"
Swing over cross-slide: 18"
Carriage longitudinal travel (z-axis): 51"
Cross-slide cross travel (x-axis): 14.375"
Turret longitudinal travel (z-axis): 51"
Spindle-face to turret, maximum: 59"
Spindle speeds, range: 24 TO 851 RPM
Carriage longitudinal feeds (z-axis): .005 TO .167 IPM
Cross-slide cross feeds (x-axis): .0025 TO .167 IPM
Turret longitudinal feed (z-axis): .005 TO .167 IPM
Spindle motor, horsepower/rpm: 40/20 HP
Overall dimensions, l x d: 16'1" X 7'0"
Weight, approximately: 15500 LBS
