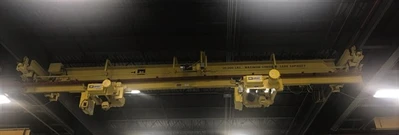

15 TON (30000 LBS) 32' LOUDEN CRANE SYSTEM MOTORIZED BRIDGE CRANE W/(2) 7.5 TON YALE/SHAW BOX “WC3M” HOISTS WITH MOTORIZED TROLLEYS - REMOTE CONTROLS

30000 LB LOUDEN MOTORIZED BRIDGE W/PENDENT CONTROL
(SERIAL NO 140650.01)

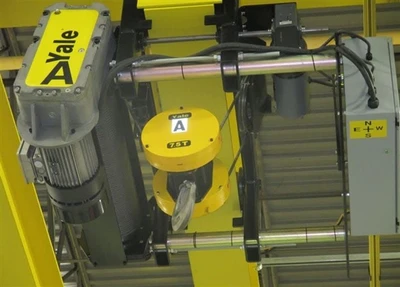

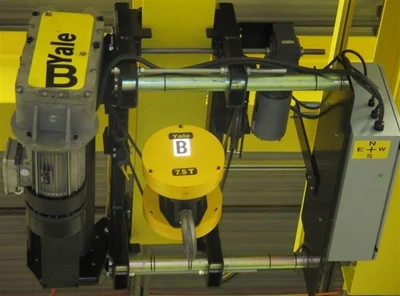

(2) 7.5 TON YALE/SHAW BOX HOISTS W/TROLLEYS
(SERIAL NUMBERS G30572VF, & G305721VF, MODELS WC3M)
REMOTE CONTROLS - TWO SPEED DRIVE - HOOKS

CATALOG SPECIFICATIONS

Bridge Load Capacity, Rated 15 TON 30000 LBS

Bridge Length Between Wheels 32'

Hoists Load Capacity, Rated 7.5 TONS 15000 LBS

Lift Height 40'

Hoist Speed, Maximum 20 FPM

Hoist Speed, Minimum 5 FPM

Hoist Motor 15 HP

Trolley Speed 50 FPM

Trolley Motor 3/4 HP

Trolley Wheelbase 43.625"

Electrical System 480/3/60

NOTE: THIS CRANE SYSTEM WAS PURCHASED OUT OF AN
AEROSPACE PLANT AND APPEAR TO BE IN BRAND NEW NEVER
USED CONDITION. IT HAS BEEN PROFESSIONALLY TAKEN
DOWN AND IS READY TO BE REINSTALLED INTO YOUR PROJECT.

PRICE: F.O.B. OUR WAREHOUSE
Bridge load capacity, rated: 15 TON 30000 LBS
Bridge length between wheels: 32'
Hoists load capacity, rated: 7.5 TONS 15000 LBS
Lift height: 40'
Hoist speed, maximum: 20 FPM
Hoist speed, minimum: 5 FPM
Hoist motor: 15 HP
Trolley speed: 50 FPM
Trolley motor: 3/4 HP
Trolley wheelbase: 43.625"
Electrical system: 480/3/60
