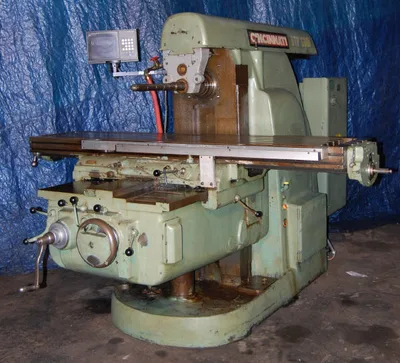

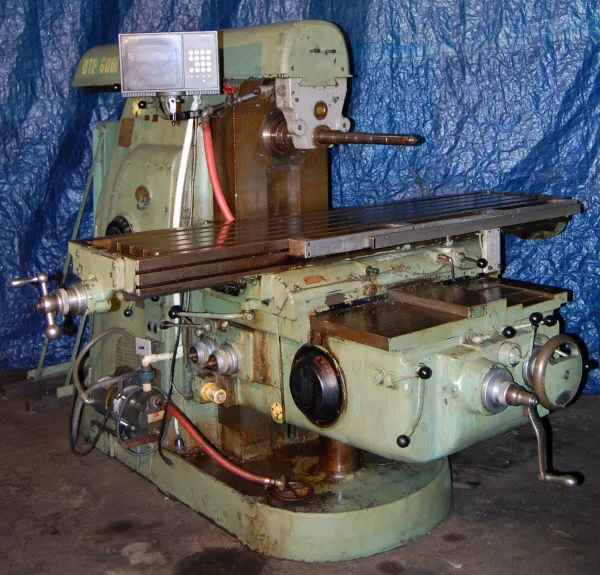

4 CINCINNATI-MILACRON "DUAL-POWER" DIAL TYPE PLAIN HORIZONTAL MILL w/ANILAM DIGITAL READOUTS - 30 HP MOTOR - FRONT & REAR CONTROLS

#4 CINCINNATI-MILACRON "DUAL-POWER" DIAL TYPE
PLAIN HORIZONTAL MILL
New 1952, Serial No 3J4P1Z-9, Model 4,
Ltr OD, Series "DUAL-POWER"

EQUIPPED WITH:
Anilam Wizard 2-Axis Digital Readouts
30 HP Spindle Motor
Front & Rear Controls
Wide Knee Design
(2) Arbor Supports - Extra Arbors
Coolant System (Built-In)

CATALOGUE SPECIFICATIONS:
Table Dimensions (Overall), W x L 18" x 80"
Table Working Surface, W x L 18" x 80"
Table Longitudinal Travel (X-Axis) 42"
Saddle In-Out Cross Travel (Z-Axis) 14"
Knee Vertical Travel (Y-Axis) 20"
Spindle-Center to Table-Top, Minimum 0"
Spindle-Center to Table-Top, Maximum 20"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 16 to 1600 RPM
(32) Longitudinal and Cross Feeds 3/8 to 90 IPM
(32) Vertical Feeds, Range 3/32 to 22.5 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 37.5 IPM
Spindle Motor, Horsepower/Voltage 30 HP/220 Volts
Floor Space Required, W x D 15'3" x 11'10"
Overall Height 6'8"
Weight, Approximately 11000 LBS

PRICE: F.O.B. OUR WAREHOUSE $6,950.00
Table dimensions (overall), w x l: 18" X 80"
Table working surface, w x l: 18" X 80"
Table longitudinal travel (x-axis): 42"
Saddle in-out cross travel (z-axis): 14"
Knee vertical travel (y-axis): 20"
Spindle-center to table-top, minimum: 0"
Spindle-center to table-top, maximum: 20"
Spindle taper: #50 NSTD
(24) spindle speeds, range: 16 TO 1600 RPM
(32) longitudinal and cross feeds: 3/8 TO 90 IPM
(32) vertical feeds, range: 3/32 TO 22.5 IPM
Power rapid traverse, long & cross: 150 IPM
Power rapid traverse, vertical: 37.5 IPM
Spindle motor, horsepower/voltage: 30 HP/220 VOLTS
Floor space required, w x d: 15'3" X 11'10"
Overall height: 6'8"
Weight, approximately: 11000 LBS

Note: This Machine Has Problems In The Knee Involving The Rapid Traverse.
We Are Selling As Is.
