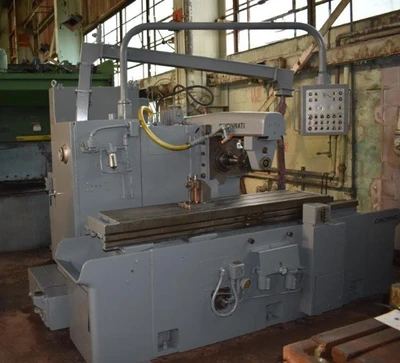

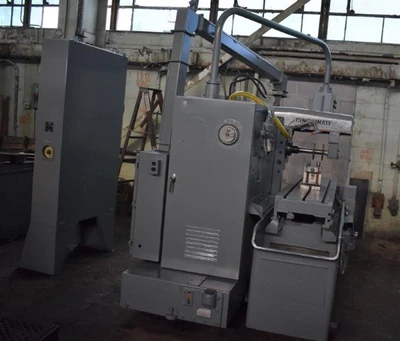

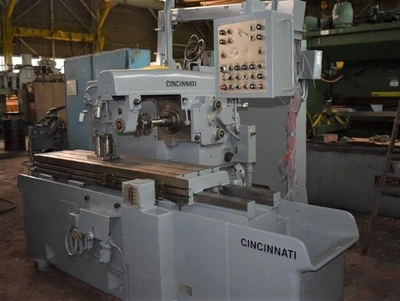

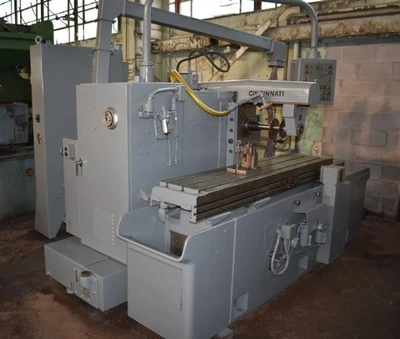

215-153 CINCINNATI-MILACRON "HYPOWERMATIC" HORIZONTAL-SPINDLE PRODUCTION MILL w/AUTOMATIC QUILL RETRACTION

Table Dimensions (Overall) W x L 15" x 71"

Table Working Surface, W x L 15" x 63"

Table Longitudinal Travel (X-Axis) 36"

Spindle-Head Vertical Travel (Y-Axis) 10"

Quill Cross Adjustment (Z-Axis) 3"

Quill Diameter 7"

Spindle Taper #50 NSTD

(16) Spindle Speeds, Range 50 TO 2000 RPM

Longitudinal Table Feeds, Range 1 TO 150 IPM

Power Rapid Table Traverse 300 IPM

Spindle Motor, Horsepower 15 HP

Feed Drive Motor, Horsepower 3 HP

Overall Dimensions, L x D 10' x 8'

Overall Height 5'11"

Weight, Approximately 13500 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table dimensions (overall) w x l: 15" X 71"
Table working surface, w x l: 15" X 63"
Table longitudinal travel (x-axis): 36"
Spindle-head vertical travel (y-axis): 10"
Quill cross adjustment (z-axis): 3"
Quill diameter: 7"
Spindle taper: #50 NSTD
(16) spindle speeds, range: 50 TO 2000 RPM
Longitudinal table feeds, range: 1 TO 150 IPM
Power rapid table traverse: 300 IPM
Spindle motor, horsepower: 15 HP
Feed drive motor, horsepower: 3 HP
Overall dimensions, l x d: 10' X 8'
Overall height: 5'11"
Weight, approximately: 13500 LBS
