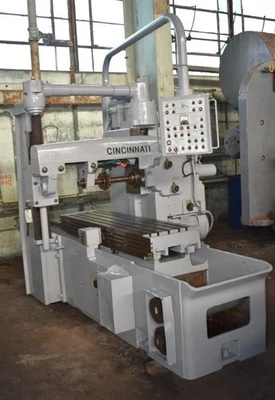

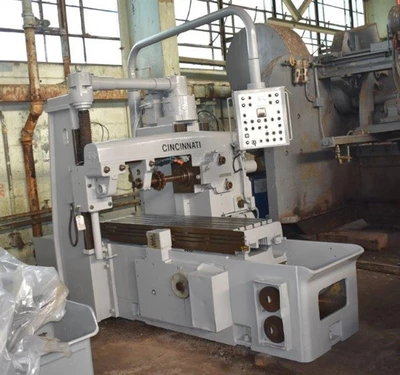

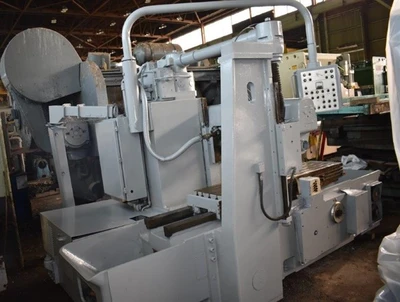

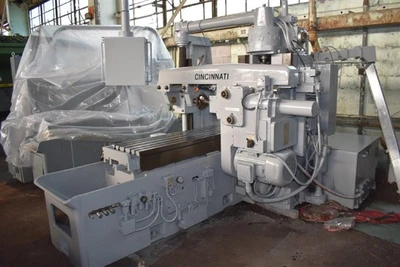

315-183 CINCINNATI-MILACRON "DL HYPOWERMATIC" EXTRA-HIGH HORIZONTAL-SPINDLE PRODUCTION MILL w/RISE & FALL HEAD TRAVEL - 6" EXTENDED VERTICAL HEAD TRAVEL - OUTBOARD SUPPORT w/ELEVATING MECHANISM

Table Dimensions, W x L 18" x 68"

Table Working Surface, W x L 18" x 60"

Table Longitudinal Travel (X-Axis) 36"

Spindle-Head Vertical Travel (Y-Axis) 20"

Quill Cross Adjustment (Z-Axis) 8"

Spindle-Center To Overarm Underside 6.625"

Spindle-Center To Table-Top, Minimum 4.25"

Spindle-Center To Table-Top, Maximum 18.25"

Quill Diameter 7.5"

Spindle Taper #50 NSTD

(16) Spindle Speeds, Range 50 to 1200 RPM

Table Feeds, Range 1 to 150 IPM

Power Rapid Table Traverse 300 IPM

Spindle Motor, Horsepower 15 HP

Hydraulic Motor, Horsepower 7.5 HP

Overall Dimensions, L x D 10'4" x 6'3"

Overall Height 5'11"

Weight, Approximately 16900 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table dimensions, w x l: 18" X 68"
Table working surface, w x l: 18" X 60"
Table longitudinal travel (x-axis): 36"
Spindle-head vertical travel (y-axis): 20"
Quill cross adjustment (z-axis): 8"
Spindle-center to overarm underside: 6.625"
Spindle-center to table-top, minimum: 4.25"
Spindle-center to table-top, maximum: 18.25"
Quill diameter: 7.5"
Spindle taper: #50 NSTD
(16) spindle speeds, range: 50 TO 1200 RPM
Table feeds, range: 1 TO 150 IPM
Power rapid table traverse: 300 IPM
Spindle motor, horsepower: 15 HP
Hydraulic motor, horsepower: 7.5 HP
Overall dimensions, l x d: 10'4" X 6'3"
Overall height: 5'11"
Weight, approximately: 16900 LBS
