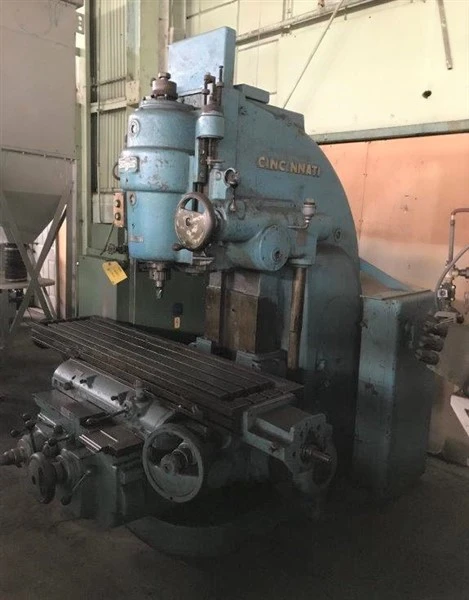

2 CINCINNATI-MILACRON ”LD” HIGH POWER DIAL TYPE VERTICAL MILL w/5 HP SPINDLE

#2 CINCINNATI-MILACRON HIGH POWER DIAL TYPE
VERTICAL MILL
Serial No 4J2V5E-3, Ltr LD,

EQUIPPED WITH:
Knee Motor --- Power Down-Feed to Head
Vertical Turret Stops (4-Position)
Coolant System (Built-In)

CATALOGUE SPECIFICATIONS:
Table Dimensions (Overall), W x L 12" x 56"
Table Longitudinal Travel (X-Axis) 28"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 18"
Spindle-Head Vertical Travel (Z-Axis) 4"
Spindle-Center to Column 14"
Spindle-Nose to Table 20"
Spindle-Nose, Diameter 5.06"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 25 to 1500 RPM
(24) Longitudinal and Cross Feeds 1/4 to 30 IPM
(24) Vertical Head Feeds, Range 1/8 to 15 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower/RPM 5 HP
Feed Motor, Horsepower 1.25 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 8'1" x 7'4"
Overall Height 7'2"
Weight, Approximately 5600 LBS

PRICE: F.O.B. OUR WAREHOUSE $2,450.00
Table dimensions (overall), w x l: 12" X 56"
Table longitudinal travel (x-axis): 28"
Saddle cross travel (y-axis): 12"
Knee vertical travel (z-axis): 18"
Spindle-head vertical travel (z-axis): 4"
Spindle-center to column: 14"
Spindle-nose to table: 20"
Spindle-nose, diameter: 5.06"
Spindle taper: #50 NSTD
(24) spindle speeds, range: 25 TO 1500 RPM
(24) longitudinal and cross feeds: 1/4 TO 30 IPM
(24) vertical head feeds, range: 1/8 TO 15 IPM
Power rapid traverse, long & cross: 150 IPM
Power rapid traverse, vertical: 75 IPM
Spindle motor, horsepower/rpm: 5 HP
Feed motor, horsepower: 1.25 HP
Electrical system: 220-440/3/60
Floor space required, w x d: 8'1" X 7'4"
Overall height: 7'2"
Weight, approximately: 5600 LBS
