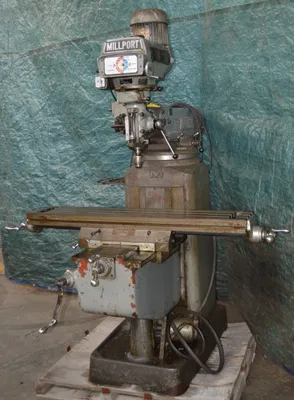

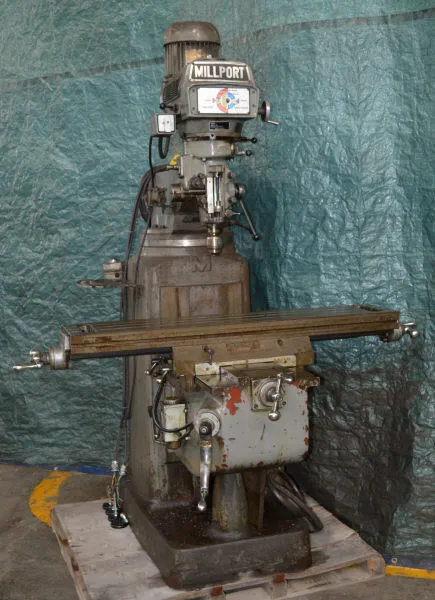

3 HP MILLPORT “3KVII” VERTICAL MILL w/10” x 50” TABLE - POWER DOWN FEED

Table Dimensions (Overall), W x L 10" x 50"

Table Longitudinal Travel (X-Axis) 30"

Saddle Cross Travel (Y-Axis) 16"

Knee Vertical Travel (Z-Axis) 16"

Quill Travel 5"

Ram Travel 22.19"

Spindle-Center To Body, Minimum 5.31"

Spindle-Center To Body, Maximum 30.5"

Spindle-Nose To Table, Maximum 18.5"

Quill, Diameter 3.375"

Spindle Speeds, Range 60 to 4200 RPM

Spindle Motor, Horsepower/RPM 3 HP/1730 RPM

Electrical System 220-440/3/60

Floor Space Required, W x D 5'3" x 4'11"

Overall Height 5'10"

Weight, Approximately 2850 LBS

F.O.B. OUR WAREHOUSE
Table dimensions (overall), w x l: 10" X 50"
Table longitudinal travel (x-axis): 30"
Saddle cross travel (y-axis): 16"
Knee vertical travel (z-axis): 16"
Quill travel: 5"
Ram travel: 22.19"
Spindle-center to body, minimum: 5.31"
Spindle-center to body, maximum: 30.5"
Spindle-nose to table, maximum: 18.5"
Quill, diameter: 3.375"
Spindle speeds, range: 60 TO 4200 RPM
Spindle motor, horsepower/rpm: 3 HP/1730 RPM
Electrical system: 220-440/3/60
Floor space required, w x d: 5'3" X 4'11"
Overall height: 5'10"
Weight, approximately: 2850 LBS
