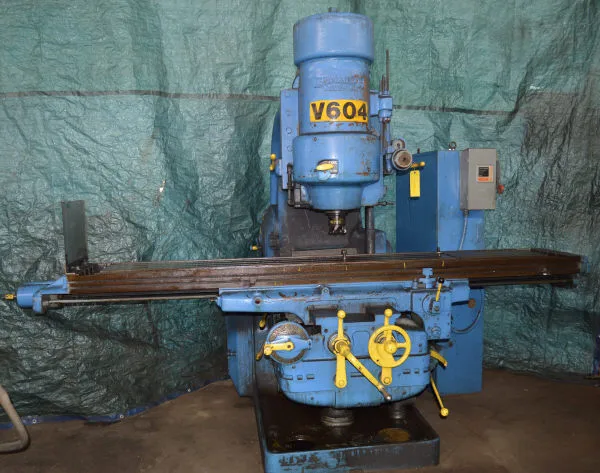

6CSM KEARNEY & TRECKER VERTICAL MILL w/50 HP SPINDLE & MONO-LEVER TABLE CONTROL

Table Dimensions (Overall), W x L 18" x 108"

Table Working Surface, W x L 18" x 108"

Table Longitudinal Travel (X-Axis) 50"

Saddle Cross Travel (Y-Axis) 16"

Knee Vertical Travel (Z-Axis) 20"

Spindle-Head Vertical Travel (Z-Axis) 4"

Spindle Taper #50 NSTD

Spindle Speeds, Range 25 to 1500 RPM

(32) Longitudinal and Cross Feeds 3/8 to 90 IPM

(32) Vertical Head Feeds, Range 3/16 to 45 IPM

(32) Vertical Knee Feeds, Range 1/8 to 30 IPM

Power Rapid Traverse, Long & Cross 150 IPM

Power Rapid Traverse, Vertical 75 IPM

Power Rapid Traverse, Spindle Head 75 IPM

Spindle Motor, Horsepower 50/25 HP

Feed Motor, Horsepower 5 HP

Weight, Approximately 19150 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table dimensions (overall), w x l: 18" X 108"
Table working surface, w x l: 18" X 108"
Table longitudinal travel (x-axis): 50"
Saddle cross travel (y-axis): 16"
Knee vertical travel (z-axis): 20"
Spindle-head vertical travel (z-axis): 4"
Spindle taper: #50 NSTD
Spindle speeds, range: 25 TO 1500 RPM
(32) longitudinal and cross feeds: 3/8 TO 90 IPM
(32) vertical head feeds, range: 3/16 TO 45 IPM
(32) vertical knee feeds, range: 1/8 TO 30 IPM
Power rapid traverse, long & cross: 150 IPM
Power rapid traverse, vertical: 75 IPM
Power rapid traverse, spindle head: 75 IPM
Spindle motor, horsepower: 50/25 HP
Feed motor, horsepower: 5 HP
Weight, approximately: 19150 LBS
