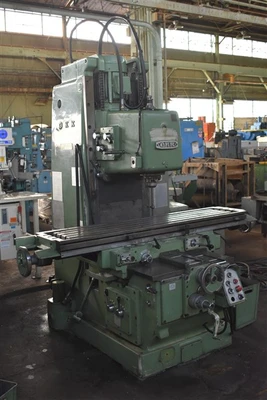

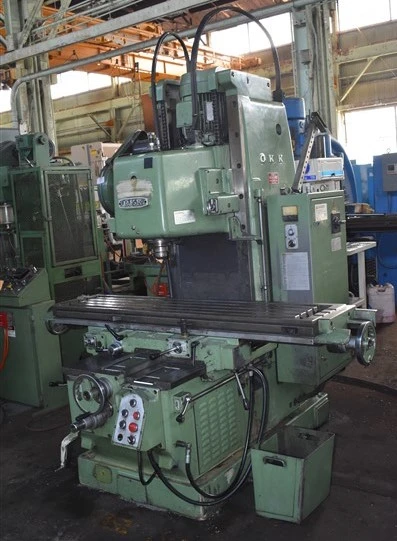

MH-3VII OKK HEAVY-DUTY BED-TYPE VERTICAL MILL w/AUTO TABLE CYCLE & MONO-LEVER TABLE CONTROL

Table Dimensions (Overall), W x L 15" x 65"

Table Load Capacity 2000 LBS (1 TON)

Table Longitudinal Travel (X-Axis) 36.25"

Saddle Cross Travel (Y-Axis) 13.75"

Spindle-Head Vertical Travel (Z-Axis) 17.75"

Spindle-Center to Column 16.125"

Spindle-Nose to Table, Minimum 4"

Spindle-Nose to Table, Maximum 21.75"

Spindle Taper #50 NSTD

(18) Spindle Speeds, Range 45 to 1600 RPM

Longitudinal and Cross Feeds 7/16 to 43 IPM

Vertical Head Feeds, Range .175 to 17.2 IPM

Spindle Motor, Horsepower 10 HP

Feed Motor, Horsepower 2 HP

Floor Space Required, W x D 122" x 72"

Weight, Approximately 9250 LBS

PRICE: F.O.B. OUR WAREHOUSE
Table dimensions (overall), w x l: 15" X 65"
Table load capacity: 2000 LBS (1 TON)
Table longitudinal travel (x-axis): 36.25"
Saddle cross travel (y-axis): 13.75"
Spindle-head vertical travel (z-axis): 17.75"
Spindle-center to column: 16.125"
Spindle-nose to table, minimum: 4"
Spindle-nose to table, maximum: 21.75"
Spindle taper: #50 NSTD
(18) spindle speeds, range: 45 TO 1600 RPM
Longitudinal and cross feeds: 7/16 TO 43 IPM
Vertical head feeds, range: .175 TO 17.2 IPM
Spindle motor, horsepower: 10 HP
Feed motor, horsepower: 2 HP
Floor space required, w x d: 122" X 72"
Weight, approximately: 9250 LBS
