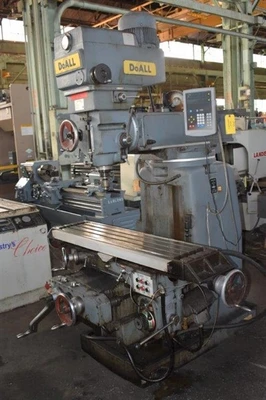

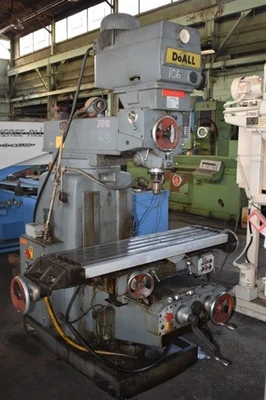

#FV-4V DOALL HEAVY-DUTY VERTICAL MILL W/DIGITAL READOUT
SERIAL NO. 05412742, MODEL FV-4V, SERIES 14562-4
C80 NEWALL DIGITAL READOUTS
4 HP SPINDLE HEAD MOTOR
NS40 TAPER SPINDLE
INFINITELY VARIABLE SPEED SPINDLE
POWER FEED TO TABLE, QUILL, SADDLE, AND KNEE
Table Working Surface, W x L 12" x 52.75"
Table Longitudinal Travel (X-Axis) 31.5"
Saddle Cross Travel (Y-Axis) 15.75"
Knee Vertical Travel (Z-Axis) 17.62"
Quill Travel 6"
Spindle Nose to Table, Minimum 0"
Spindle Nose to Table, Maximum 17.625"
Throat Distance, Minimum 6.31"
Throat Distance, Maximum 31.5"
Workpiece Load Capacity, Maximum 1500 LBS
Quill Diameter 3.375"
Spindle Taper #NS40
Spindle-Head Longitudinal Swivel 180-DEGREES
Spindle Speeds, Infinitely Variable 60 to 4150 RPM
Quill Feeds, Range .003 to .006 IPR
Longitudinal and Cross Feeds 1/2 to 20.875 IPM
Vertical Knee Feeds, Range 1/4 to 10.5 IPM
Spindle Motor, Horsepower 4 HP
Feed Motor, Horsepower 1.5 HP
Weight, Approximately 4900 LBS
PRICE: F.O.B. OUR WAREHOUSE
Table working surface, w x l: 12" X 52.75"
Table longitudinal travel (x-axis): 31.5"
Saddle cross travel (y-axis): 15.75"
Knee vertical travel (z-axis): 17.62"
Quill travel: 6"
Spindle nose to table, minimum: 0"
Spindle nose to table, maximum: 17.625"
Throat distance, minimum: 6.31"
Throat distance, maximum: 31.5"
Workpiece load capacity, maximum: 1500 LBS
Quill diameter: 3.375"
Spindle taper: #NS40
Spindle-head longitudinal swivel: 180-DEGREES
Spindle speeds, infinitely variable: 60 TO 4150 RPM
Quill feeds, range: .003 TO .006 IPR
Longitudinal and cross feeds: 1/2 TO 20.875 IPM
Vertical knee feeds, range: 1/4 TO 10.5 IPM
Spindle motor, horsepower: 4 HP
Feed motor, horsepower: 1.5 HP
Weight, approximately: 4900 LBS
