15 TON PERKINS “15S” HIGH-SPEED GAP FRAME PRESS w/VARI-SPEED DRIVE - CONTROL STAND & READOUT

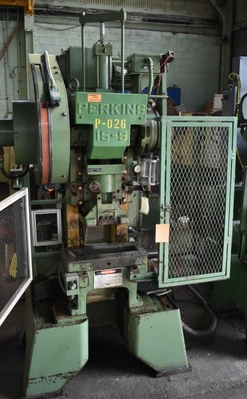

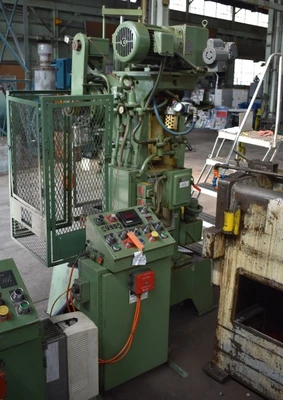

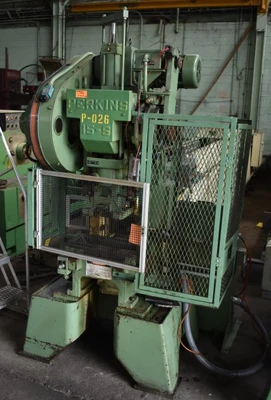

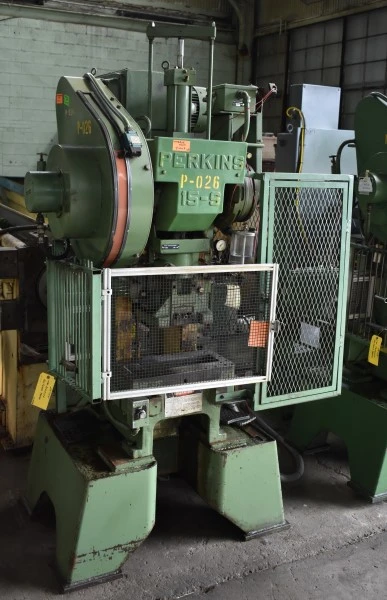

15 TON PERKINS HIGH-SPEED GAP FRAME PRESS
New 1981, Serial No 44757, Model 15S, Series S

EQUIPPED WITH:
Air Clutch & Brake
Air Counterbalance
Vari-Speed Drive
Bijur Automatic Lube System
Solid Base

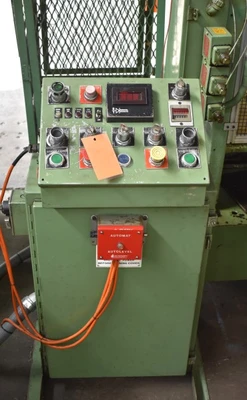

Control Stand w/Readout

CATALOG SPECIFICATIONS:
Tonnage Capacity 15 TON
Stroke Length 1.5"
Shut Height 7"
Ram Adjustment 2.25"
Ram Area, L-R x F-B 10" x 9"
Bed Area, L-R x F-B 20" x 10"
Gap Depth 5.75"
Drive Motor, Horsepower 1-1/2 HP
Weight, Approximately 3200 LBS
F.O.B. OUR WAREHOUSE
Tonnage capacity: 15 TON
Stroke length: 1.5"
Shut height: 7"
Ram adjustment: 2.25"
Ram area, l-r x f-b: 10" X 9"
Bed area, l-r x f-b: 20" X 10"
Gap depth: 5.75"
Drive motor, horsepower: 1-1/2 HP
Weight, approximately: 3200 LBS
