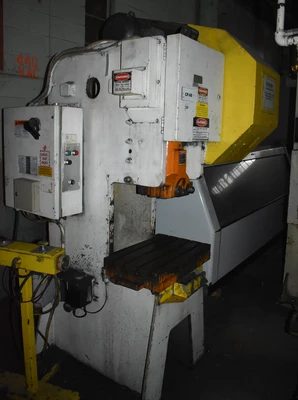

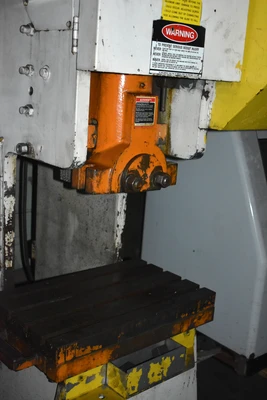

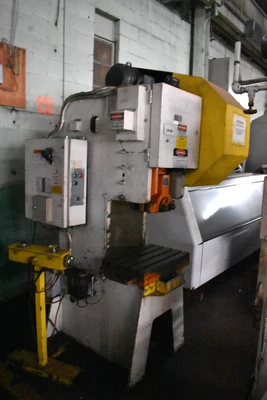

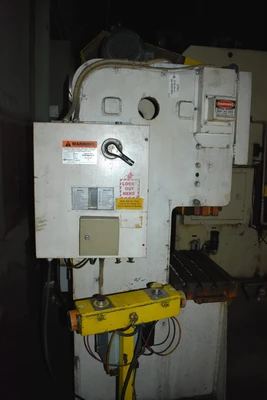

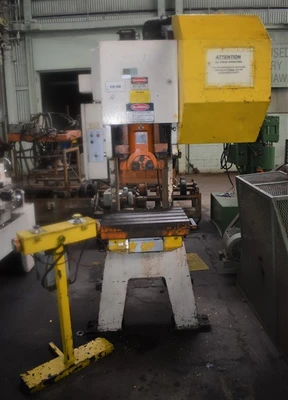

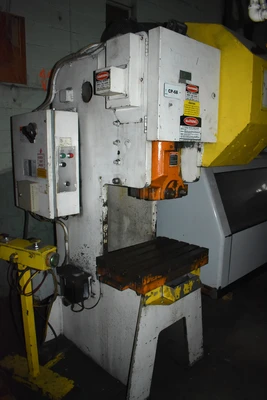

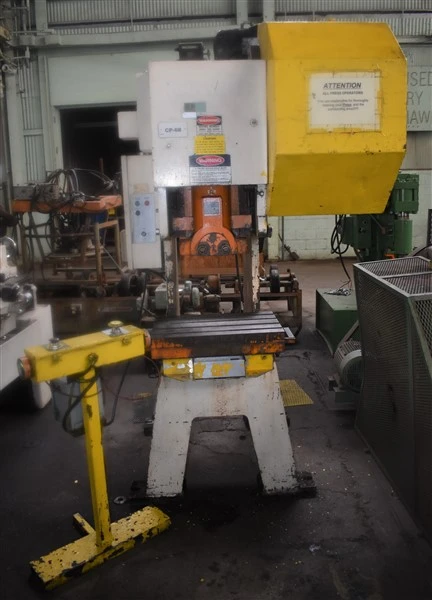

32 TON HEIM/ROUSELLE “G1-32-4” FLYWHEEL-TYPE OPEN BACK GAP FRAME PRESS w/AIR COUNTERBALANCE

32 TON HEIM/ROUSELLE OPEN BACK GAP FRAME PRESS
SERIAL NO P32476, MODEL G1-32-4,

EQUIPPED WITH:
AIR CLUTCH & BRAKE
AIR COUNTERBALANCE
FLYWHEEL DRIVE
2" T-SLOTTED BOLSTER PLATE

CATALOGUE SPECIFICATIONS:
Tonnage Capacity, 32 TON
Stroke Length 2"
Shut Height to Bed, (SDAU) 14.5"
Ram Adjustment 2.5"
Ram Area, L-R x F-B 12" x 9"
Bed Area, L-R x F-B 24" x 15"
Opening In Bed, L-R x F-B 14" x 7"
Hole In Ram 2"
Throat Depth 8.5"
Width Of Opening In Back 16"
Strokes Per Minute 140 SPM
Motor, Horsepower 3 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 4' x 4'2"
Overall Height 7'9"
Weight Approximately 3150 LBS
Tonnage capacity,: 32 TON
Stroke length: 2"
Shut height to bed, (sdau): 14.5"
Ram adjustment: 2.5"
Ram area, l-r x f-b: 12" X 9"
Bed area, l-r x f-b: 24" X 15"
Opening in bed, l-r x f-b: 14" X 7"
Hole in ram: 2"
Throat depth: 8.5"
Width of opening in back: 16"
Strokes per minute: 140 SPM
Motor, horsepower: 3 HP
Electrical system: 220-440/3/60
Floor space required, w x d: 4' X 4'2"
Overall height: 7'9"
Weight approximately: 3150 LBS
