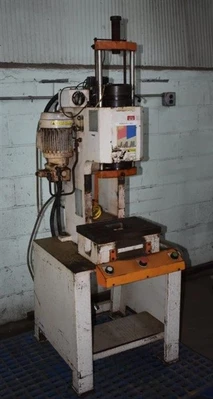

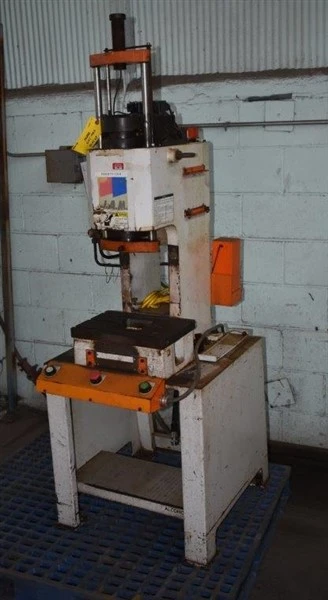

3 TON J.A.M (JAPAN AUTOMATIC MACHINE CO LTD) “HYP305H” C-FRAME HIGH-SPEED BENCH-TYPE HYDRAULIC PRESS

Tonnage Capacity 3 TONS 29.4kN

Stroke Length, Maximum 6" 150mm

Stroke Length, Minimum 1.18" 30mm

Daylight 9.84" 250mm

Shank Hole .787" x 1.57"

Approach Speed 12.5 IPS 319mmps

Return Speed 10.79 IPS 274mmps

Press Speed 1.38 IPS 35mmps

Bolster Size, L x W 13.78" x 9.45"

Motor, KW Rating 0.75 KW

Weight Approximately 1000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity: 3 TONS 29.4KN
Stroke length, maximum: 6" 150MM
Stroke length, minimum: 1.18" 30MM
Daylight: 9.84" 250MM
Shank hole: .787" X 1.57"
Approach speed: 12.5 IPS 319MMPS
Return speed: 10.79 IPS 274MMPS
Press speed: 1.38 IPS 35MMPS
Bolster size, l x w: 13.78" X 9.45"
Motor, kw rating: 0.75 KW
Weight approximately: 1000 LBS
