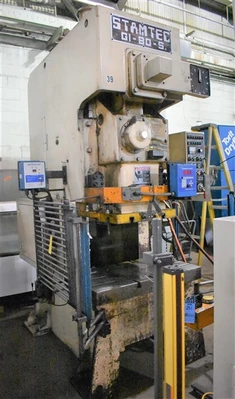

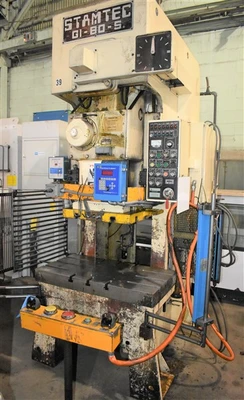

88 TON STAMTEC "G1-80-S" OPEN BACK GAP FRAME PRESS w/VARI-SPEED DRIVE

88 TON STAMTEC OPEN BACK GAP FRAME PRESS
NEW 1994, SERIAL NO 0311, MODEL G1-80-S

EQUIPPED WITH:
Air Clutch & Brake
Air Counterbalance
Variable Speed Drive
4" Thick Bolster Plate
Overload Protector
Lubrication System

CATALOG SPECIFICATIONS:
Tonnage Capacity, 88 TON
Stroke Length 5.96"
Die Height, (SDAU) 12.897"
Ram Adjustment 3.15"
Ram Area, L-R x F-B 22" x 16.5"
Bolster Area, L-R x F-B 39.5" x 21.5"
Opening In Bed, L-R x F-B 21" x 14.9"
Strokes Per Minute, Variable 35 to 70 SPM
Motor, Horsepower 7.5 HP
Electrical System 230-460/3/60
Floor Space Required, W x D 47" x 76"
Overall Height 116"
Weight Approximately 15000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity,: 88 TON
Stroke length: 5.96"
Die height, (sdau): 12.897"
Ram adjustment: 3.15"
Ram area, l-r x f-b: 22" X 16.5"
Bolster area, l-r x f-b: 39.5" X 21.5"
Opening in bed, l-r x f-b: 21" X 14.9"
Strokes per minute, variable: 35 TO 70 SPM
Electrical system: 230-460/3/60
Floor space required, w x d: 47" X 76"
Overall height: 116"
Weight approximately: 15000 LBS
Motor, horsepower: 7.5 HP
