200 TON DAKE “19-525” H-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS w/78” BETWEEN HOUSINGS - 40” STROKE
Have one to sell?
$69,500.00 USD
ConditionUsed
1 available

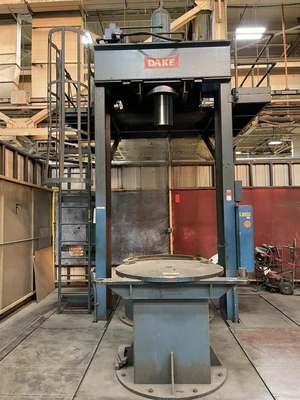

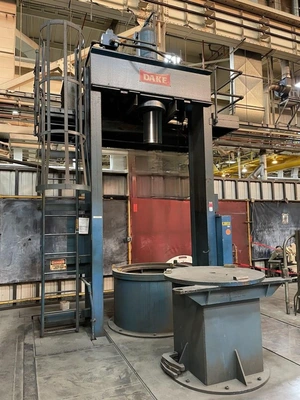

200 TON DAKE "H"-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS
SERIAL NO 190373, MODEL 19-525,

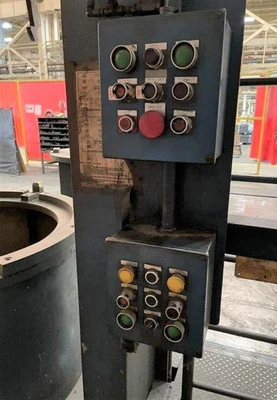

PUSHBUTTONS & CONTROLS CONSISTING OF: FAST DOWN,
SLOW DOWN, FAST RAISE, FRAME FORWARD, SLOW RAISE,
LOCK FRAME, FRAME REVERSE, UNLOCK FRAME, FAST DOWN,
SLOW DOWN, START, STOP.
HYDRAULIC GAUGE
BELL HOUSING & WORK SUPPORT TABLE
Tonnage Capacity 200 TON
Stroke Length, Maximum 40"
Daylight to Ram, Maximum 130"
Daylight to Ram, Minimum 90"
Distance Between Housings 78"
Ram Speed, Pressing 8 IPM
Ram Speed, Advance 115 IPM
Ram Speed, Return 300 IPM
Ram Speed, Breakaway 20 IPM
Head Travel, Speed 28 FPM
Motor Horsepower 25 HP
Electrical System 460/3/60
Frame Traverse 150"
CONDITION: APPEARS TO BE IN GOOD CONDITION
AS TAKEN FROM SERVICE.
PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity: 200 TON
Stroke length, maximum: 40"
Daylight to ram, maximum: 130"
Daylight to ram, minimum: 90"
Distance between housings: 78"
Ram speed, pressing: 8 IPM
Ram speed, advance: 115 IPM
Ram speed, return: 300 IPM
Ram speed, breakaway: 20 IPM
Head travel, speed: 28 FPM
Motor horsepower: 25 HP
Electrical system: 460/3/60
Frame Traverse: 150"
