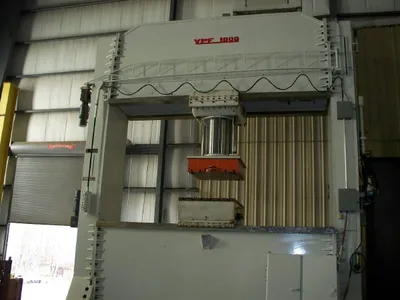

1000 TON URSVIKEN “VPF1000” HYDRAULIC PORTAL TYPE STRAIGHTENING SHIPBUILDING PRESS - SYNCHRONOUS LATERALLY SLIDING PRESS UNIT & TABLE - SWIVELING T-SLOTTED UPPER PLATEN - DOUBLE COLUMN DESIGN - (COMPLETELY REBUILT)

Tonnage Capacity, Metric Tons 1000 TON

Upper Platen Stroke Length 39.4"

Daylight, Ram to Table 67"

Lateral Travel, w/Guide Protections 134"

Lateral Travel, w/o Guide Protection 173.4"

Table Dimensions, L x W 55.1" x 62.8"

Ram Dimensions, L x W 51.16" x 51.16"

Distance Between Pillars 236.6"

Working Height 25.5"

Ram Speed, Rapid Approach 2.56 IPS

Ram Speed, Pressing .242 IPS

Ram Speed, Rapid Return 2.56 IPS

Lateral Travel Speed 1.97 IPS

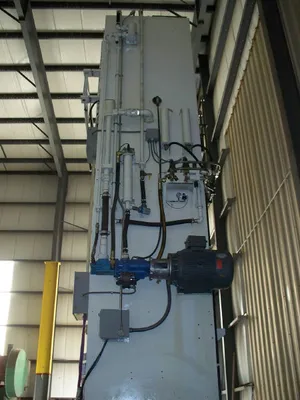

Hydraulic Pump Motor, Horsepower 75 HP

Weight, Approximately 212000 LBS

NOTE: The VPF Type Press Is A Double Column Press For

Straightening And Bending Ships' Plates And Similar

Items. It Has A Synchronized, Laterally Sliding

Press Unit And Table. Because Of This Feature The

Press Is Capable Of Covering The Entire Width Of The

Plate. This Machine Was Completely Rebuilt.

PRICE: F.O.B. INDIANA (HAYDEN) $750,000.00

COMPLETERLY REBUILT INCLUDES ONE-YEAR WARRANTY
Tonnage capacity, metric tons: 1000 TON
Upper platen stroke length: 39.4"
Daylight, ram to table: 67"
Lateral travel, w/guide protections: 134"
Lateral travel, w/o guide protection: 173.4"
Table dimensions, l x w: 55.1" X 62.8"
Ram dimensions, l x w: 51.16" X 51.16"
Distance between pillars: 236.6"
Working height: 25.5"
Ram speed, rapid approach: 2.56 IPS
Ram speed, pressing: .242 IPS
Ram speed, rapid return: 2.56 IPS
Lateral travel speed: 1.97 IPS
Hydraulic pump motor, horsepower: 75 HP
Weight, approximately: 212000 LBS
