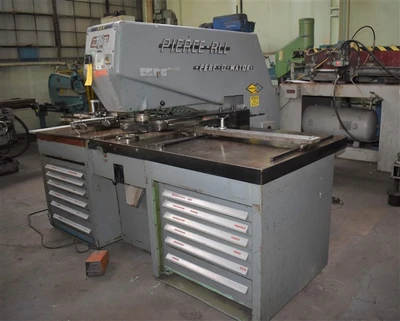

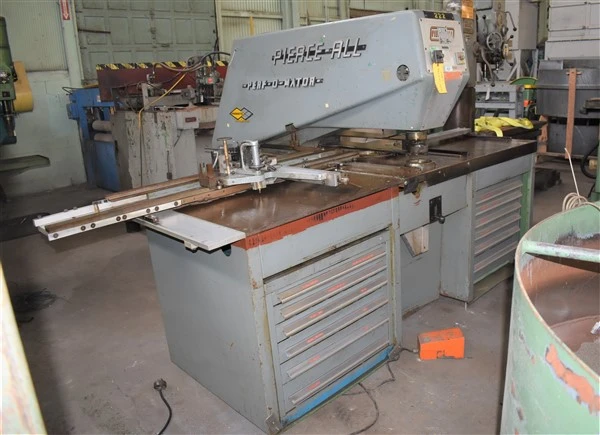

30 TON PIERCE-ALL "3030A-4830 PERF-O-MATOR" SINGLE STATION PUNCH w/30” THROAT - TOOLING

30 TON PIERCE-ALL "PERF-O-MATOR" SINGLE STATION PUNCH
Model 3030A-4830, Series "PERF-O-MATOR"

EQUIPPED WITH:
Adjustable Shut Height
Large Quantity Of Tooling

CATALOG SPECIFICATIONS:
Tonnage Capacity 30 TON
Stroke Length .625"
Shut Height Adjustment, Range 0" to .125"
Scale Gauge Length 48"
Scale Gauge Sheet Capacity, LR x FB 48" x 30"
Duplicator Sheet Capacity, LR x FB 30" x 30"
Table Area, Overall 96" x 42"
Throat Depth 30"
Hole Punching Capacity, Maximum 3.5"
Strokes Per Minute, Full Load 130 SPM
Motor Horsepower 5 HP
Overall Dimensions, L x W 79" x 103"

NOTE: These Specifications Are As Taken From Previous
Owners Records And A Close Physical Inspection Of
The Machine However We Could Not Find A Tag With
The Serial Number.

PRICE: F.O.B. OUR WAREHOUSE
Tonnage capacity: 30 TON
Stroke length: .625"
Shut height adjustment, range: 0" TO .125"
Scale gauge length: 48"
Scale gauge sheet capacity, lr x fb: 48" X 30"
Duplicator sheet capacity, lr x fb: 30" X 30"
Table area, overall: 96" X 42"
Throat depth: 30"
Hole punching capacity, maximum: 3.5"
Strokes per minute, full load: 130 SPM
Motor horsepowerl: 5 HP
Overall dimensions, l x w: 79" X 103"
