| Tonnage | 45 T | 40.823 t |
| Stroke | 5" | 127 mm |
| Shut Height | 16.25" | 412.75 mm |
| Bed W | 18" | 457.2 mm |
| Bed L | 28" | 711.2 mm |
| SPM | 110 strokes/min. | 110 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
| Dimensions | 48 x 69 x 106 | 48 x 69 x 106 |
| Weight | 4800 LBS | 4800 LBS |

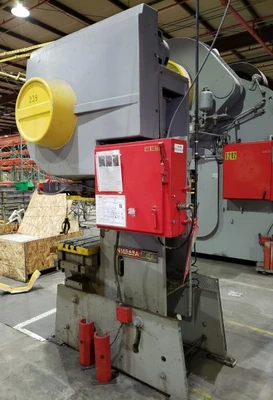

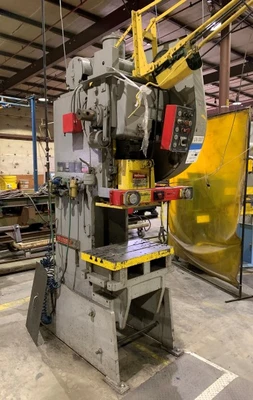

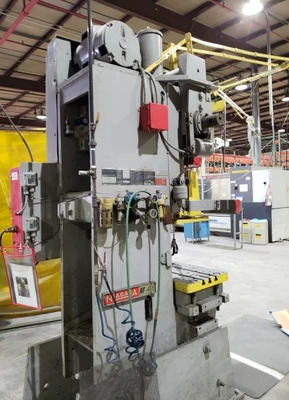

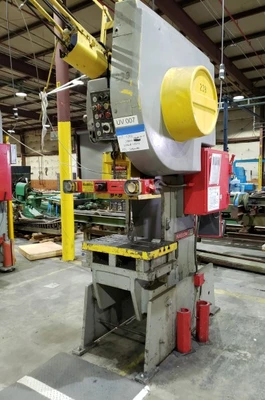

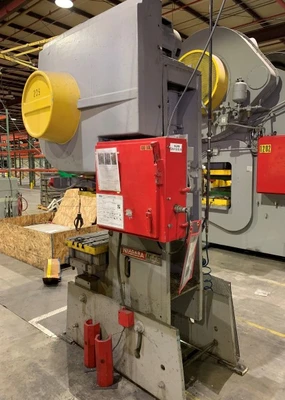

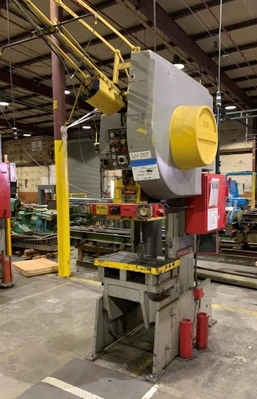

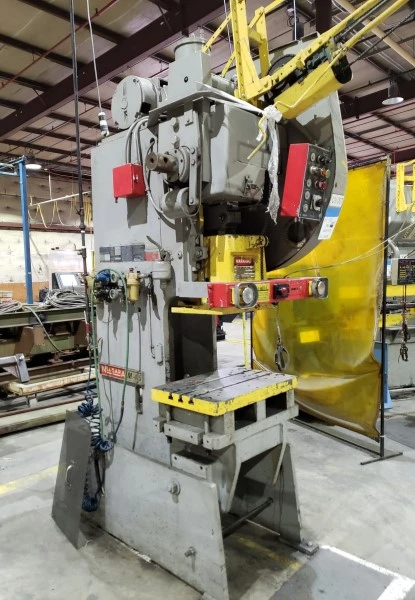

45 TON NIAGARA FLYWHEEL-TYPE O.B.I. PRESS
Serial No. 48294, Model M45
EQUIPPED WITH:
Air Clutch & Brake
Air Counterbalance
High Frame
Dual Palm Button Controls
2" Bolster Plate

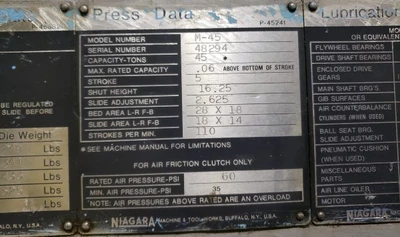

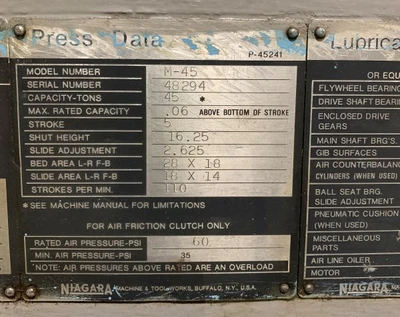

CATALOG SPECIFICATIONS:
Tonnage Capacity 45 TON
Stroke Length 5"
Shut Height to Bed, (SDAU) 16.25"
Ram Adjustment 2-5/8"
Slide Area, L-R x F-B 18" x 14"
Bed Area, L-R x F-B 28" x 18"
Width of Opening in Back 14.5"
Throat Depth 9.5"
Strokes per Minute 110 SPM
Drive Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 48" x 69"
Overall Height 106"
Weight Approximately 4800 LBS
F.O.B. OUR WAREHOUSE
This equipment has been sold. Similar equipment available now is shown below.
