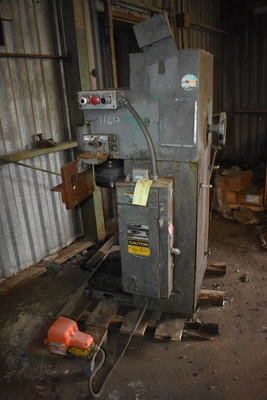

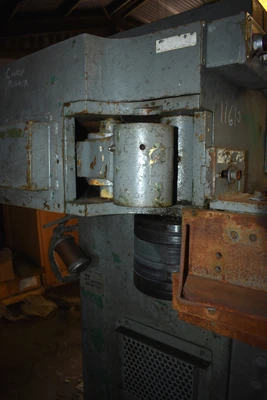

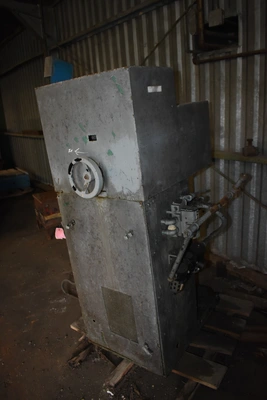

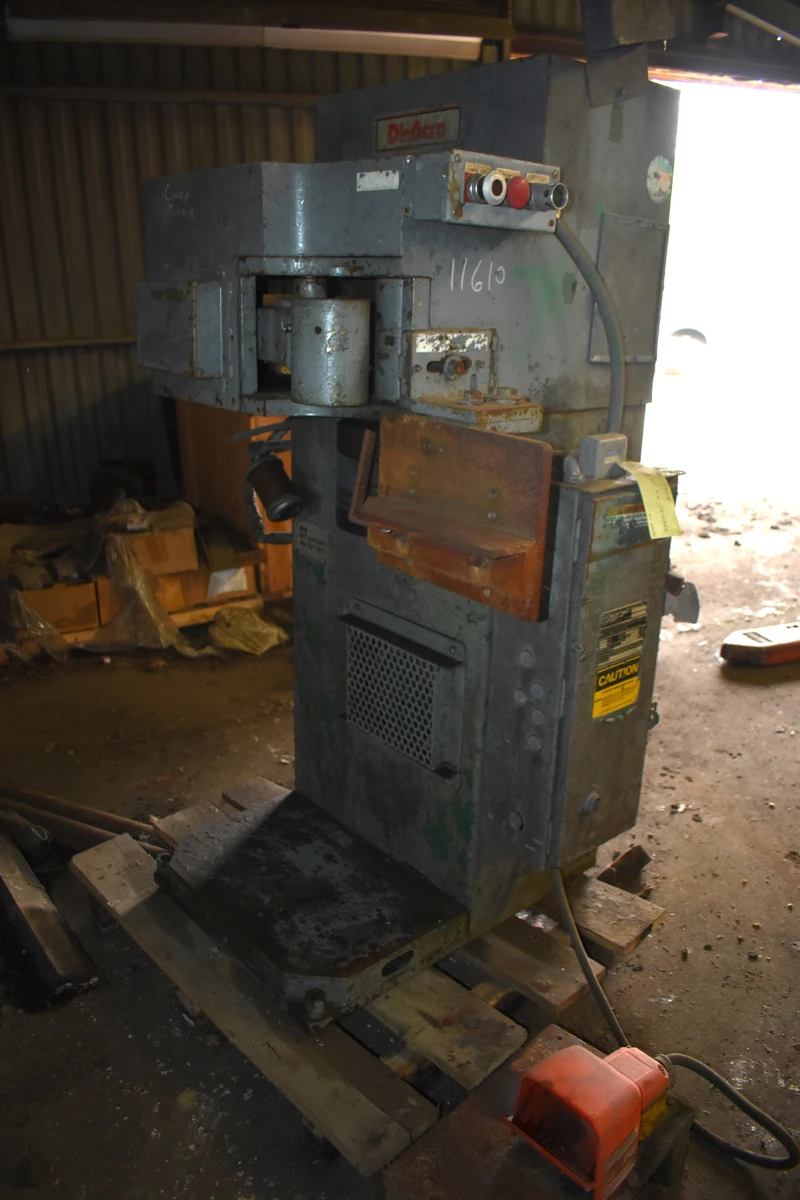

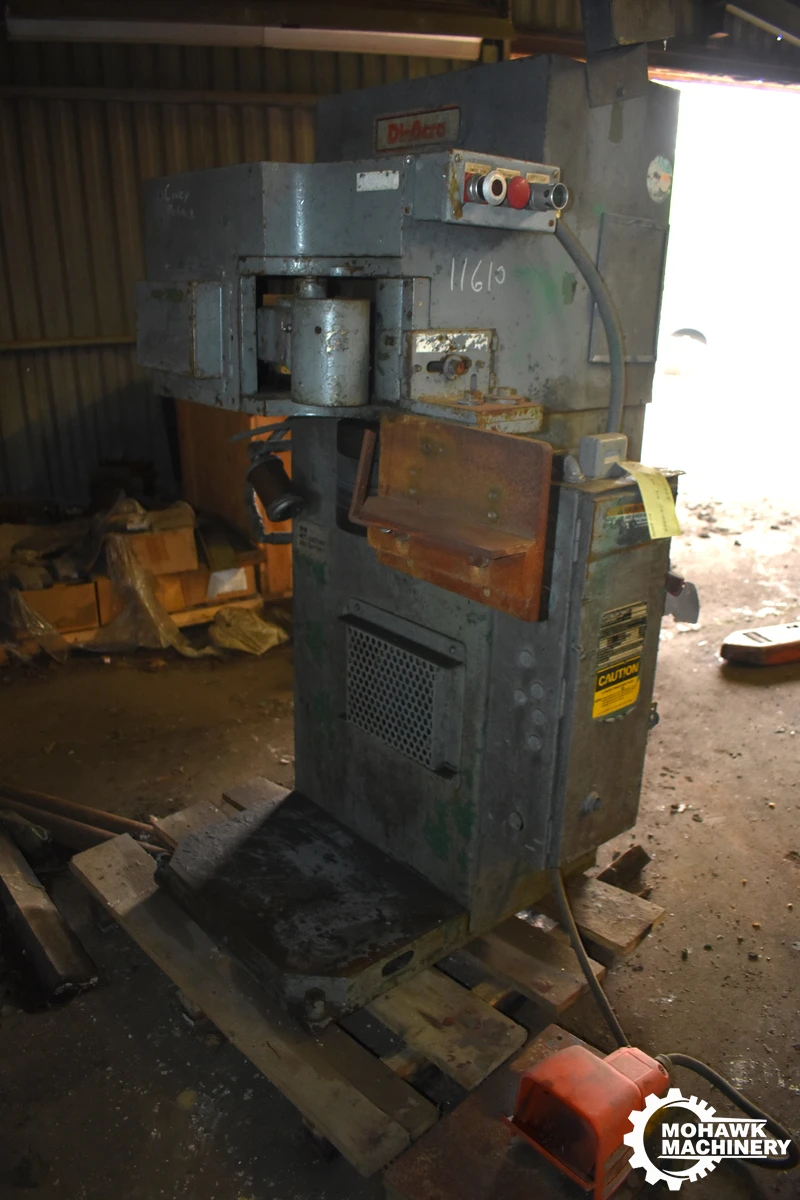

6" x 10 GA DI-ACRO "V" K-PRENE 2-ROLL ROLLING & CURVING MACHINE w/ROLL POSITION CONTROL - ADJUSTABLE FEED TABLE

6' x 10 GA DIACRO "V" K-PRENE 2-ROLL ROLLING &
CURVING MACHINE
SERIAL NO 480057914, MODEL V

EQUIPPED WITH:
Roll Position Control
Adjustable Feed Table

CATALOG SPECIFICATIONS:
Capacity Rating 6' x 10 GA
Capacity, Low Carbon Steel 10 GA
Working Length Of Rolls 6"
Steel Roll Diameter 4"
K-Prene Roll Diameter 8"
Rolling Speed, Maximum 22 FPM
Floor Space Required, L x W 40" x 36"
Overall Height 59"
Weight, Approximately 1650 LBS
F.O.B. OUR WAREHOUSE
Capacity, rating: 6" X 10-GAUGE
Capacity, low carbon steel: 10-GAUGE
Working length of rolls: 6"
Steel roll diameter: 4"
K-prene roll diameter: 8"
Rolling speed, maximum: 22 FPM
Floor space required, l x w: 40" X 36"
Overall height: 59"
Weight, approximately: 1650 LBS
