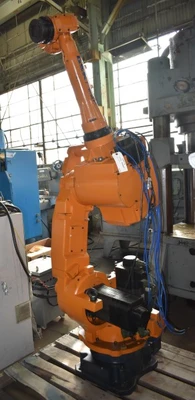

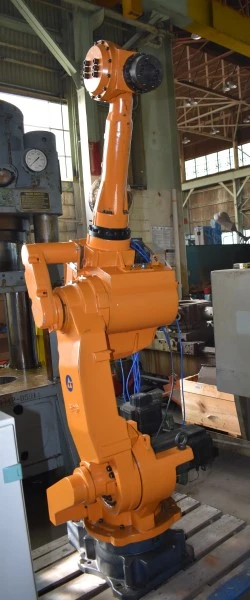

110 LB GSK "RB50" 6-AXIS CNC ARM-TYPE MATERIAL HANDLING ROBOT w/TEACH PENDANT

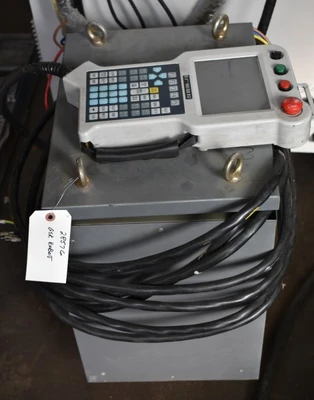

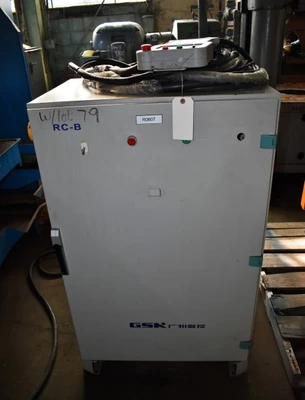

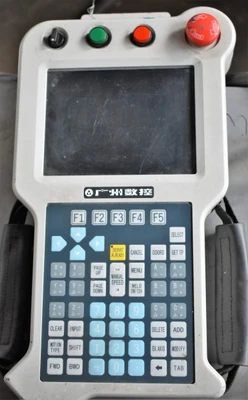

GSK "RCB" 6-AXIS CNC ROBOTIC CONTROL W/TEACH PENDANT
AC SERVO MOTORS & DRIVES
TRANSFORMER
FLOOR MOUNTED DESIGN

CATALOG SPECIFICATIONS INCH/METRIC

Number of Servoed Axis' 6-AXIS

Load Capacity, Weight Handled 110 LB/50 KG

Horizontal Reach (R-Axis), Maximum 77"/1956 MM

Robot Base Left to Right, (J1) +/- 178 DEGREES

Lower Arm Forward & Backward, (J2) +130, -90 DEGREES

Vertical Reach Upper Arm Raised & Lowered (J3) +75, - 200 DEG

Wrist Roll (J4) +/- 360 DEGREES

Wrist Up & Down (J5) +/- 115 DEGREES

Wrist Twisting Motion (J6) +/- 360 DEGREES

Speed Robot Base Left to Right (J1) 171 DEG/SEC

Speed Lower Arm Forward & Back (J2) 171 DEG/SEC

Speed Vertical Reach Upper Arm (J3) 171 DEG/SEC

Speed Wrist Roll (J4) 215 DEG/SEC

Speed Wrist Up & Down (J5) 251 DEG/SEC

Speed Wrist Twisting Motion (J6) 365 DEG/SEC

Weight Approximately 1450 LBS 650 KG

CONDITION: APPEARS TO BE IN VERY GOOD CONDITION
AS TAKEN FROM SERVICE WITH A REPLACEMENT PRICE OF
$45,995.00.

PRICE: F.O.B. OUR WAREHOUSE
Number of servoed axis': 6-AXIS
Load capacity, weight handled: 110 LB/50 KG
Horizontal reach (r-axis), maximum: 77"/1956 MM
Robot base left to right, (j1): +/- 178 DEGREES
Lower arm forward & backward, (j2): +130, -90 DEGREES
Vertical reach upper arm raised & lowered (j3): +75, - 200 DEG
Wrist roll (j4): +/- 360 DEGREES
Wrist up & down (j5): +/- 115 DEGREES
Wrist twisting motion (j6): +/- 360 DEGREES
Speed robot base left to right (j1): 171 DEG/SEC
Speed lower arm forward & back (j2): 171 DEG/SEC
Speed vertical reach upper arm (j3): 171 DEG/SEC
Speed wrist roll (j4): 215 DEG/SEC
Speed wrist up & down (j5): 251 DEG/SEC
Speed wrist twisting motion (j6): 365 DEG/SEC
Weight approximately: 1450 LBS 650 KG
