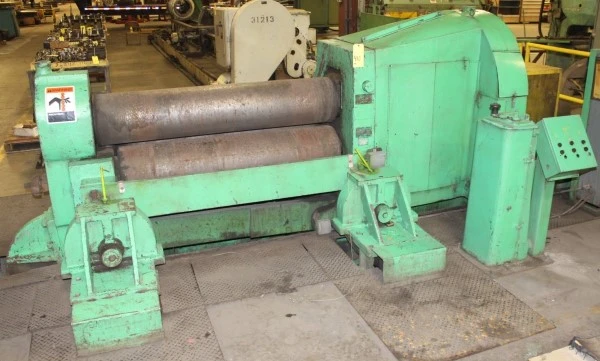

5' X 1-1/2" BERTSCH “14” INITIAL-TYPE PLATE BENDING ROLL w/AIR DROP END - 50 HP DRIVE MOTOR
Have one to sell?
$18,500.00 USD
ConditionUsed
1 available
5' X 1-1/2" BERTSCH INITIAL-TYPE PLATE BENDING ROLL
SERIAL NO M-7571, MODEL 14
AIR DROP END
OPERATORS CONTROL CONSOLE
POWER REAR ROLL ADJUSTMENT
POWER FRONT ROLL ADJUSTMENT
Plate Bending Capacity, Boiler Duty 5' x 1-1/2"
Length Of Top Roll 62"
Length of Bottom & Rear Rolls 62'
Top-Roll Diameter 14"
Bottom-Roll Diameter 16"
Rear-Roll Diameter 16"
Main Drive Motor, HP 50 HP
Rear Roll Adjusting Motor, HP 25
Weight, Approximately 43000 LBS

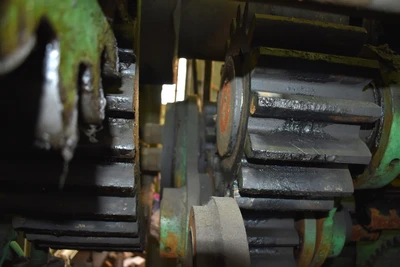

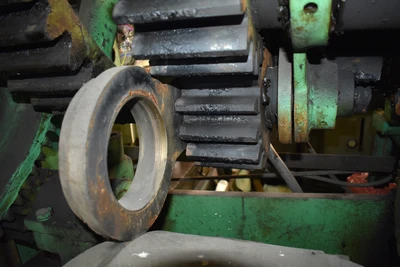

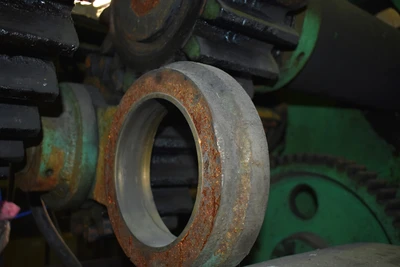

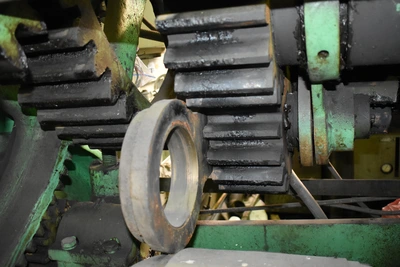

Note: The Gear Train For Bottom Roll Drive Needs Repair.
Selling As Is.
F.O.B. OUR WAREHOUSE
Plate bending capacity, boiler duty: 5' X 1-1/2"
Length of top roll: 62"
Length of bottom & rear rolls: 62'
Top-roll diameter: 14"
Bottom-roll diameter: 16"
Rear-roll diameter: 16"
Main drive motor, hp: 50 HP
Rear roll adjusting motor: HP 25
Weight, approximately: 43000 LBS
