9" x 18" WELLS (WF) "W-9" HORIZONTAL BAND SAW w/HYDRAULIC UP/DOWN BAND FEED - VISE
Have one to sell?
$3,950.00 USD
ConditionUsed
1 available

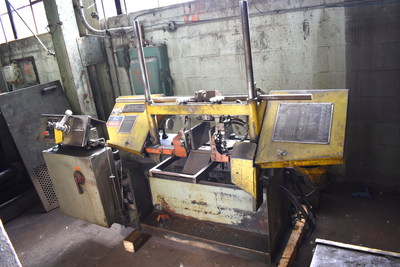

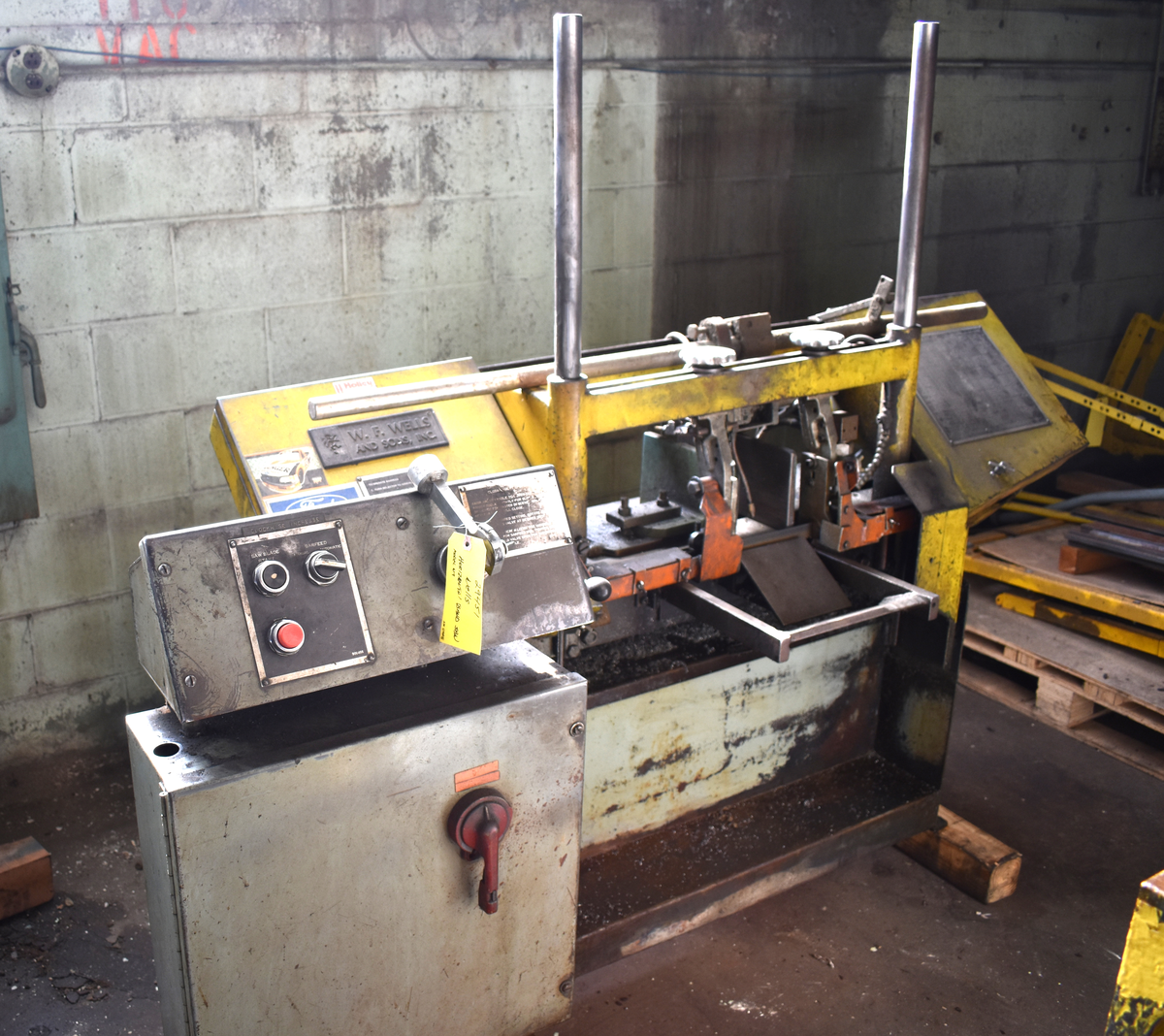

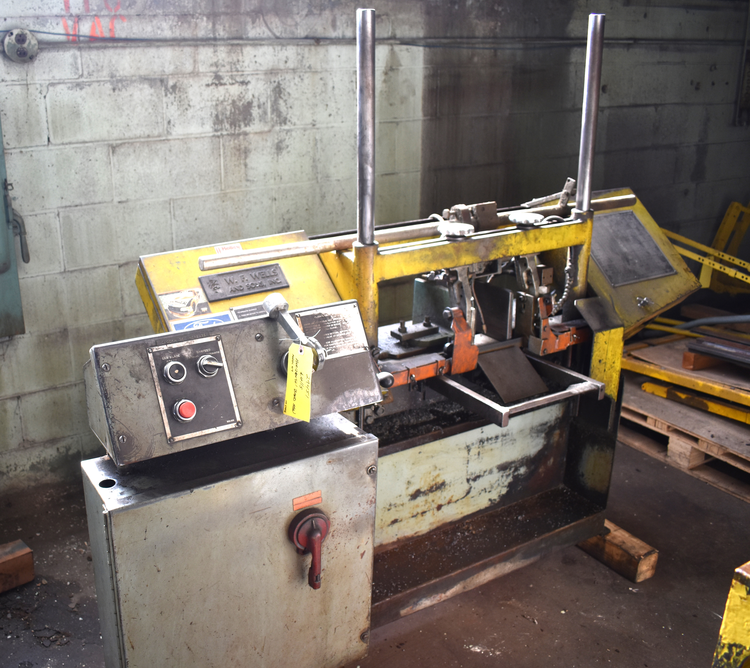

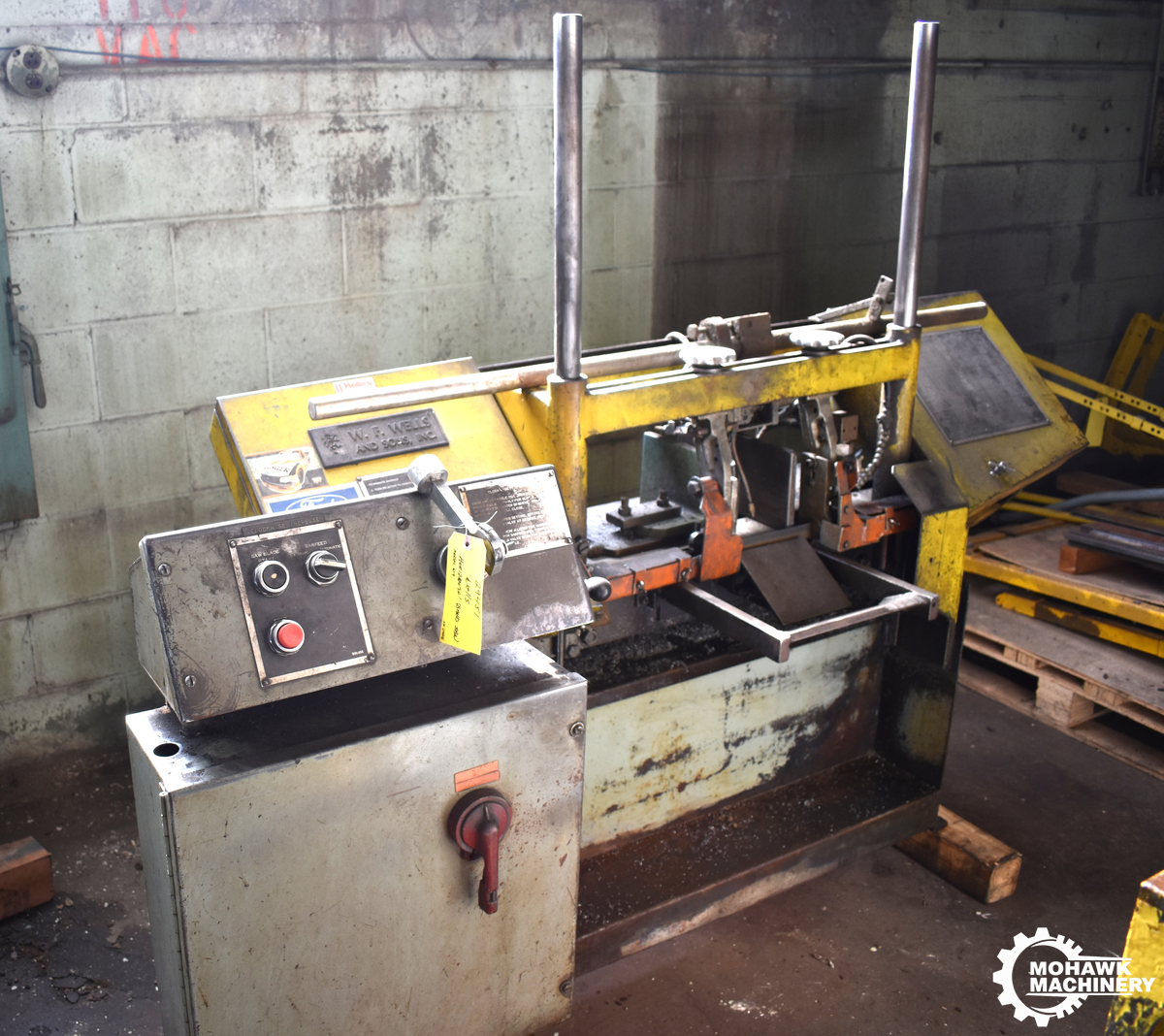

9" x 18" WELLS (WF) AUTOMATIC HORIZONTAL BAND SAW
Serial No 803490, Model W9
Manual Rotating Clamping Vise
Hydraulic Band Saw Up-Feed and Down-Feed
Coolant Tank
Round Stock Capacity, Maximum .......... 9"
Flat Stock Capacity, Maximum .......... 9" x 18"
Flat Stock Capacity, 45-Degree .......... 9" x 6"
Clearance Under Blade, Maximum 16"
Band Length .......... 11'6"
Band Width .......... 3/4"
Band Thickness .......... .032"
Band Carrier Wheels, Diameter .......... 14.5"
Band Speeds, Infinitely Variable .......... 60 to 300 FPM
Load Capacity, Maximum .......... 2000 LBS
Blade Cutting Force, Range .......... 20 to 80 LBS
Blade Motor, Horsepower .......... 1 HP
Hydraulic Motor, Horsepower .......... 1/3 HP
Floor Space Required, L x W .......... 5'6" x 2'11"
Overall Height .......... 5'
Weight, Approximately .......... 700 LBS
F.O.B. OUR WAREHOUSE
Round Stock Capacity, Maximum: 9"
Flat Stock Capacity, Maximum: 9" x 18"
Flat Stock Capacity, 45-Degree: 9" x 6"
Band Length: 11'6"
Band Width: 3/4"
Band Thickness: 032"
Band Carrier Wheels, Diameter: 14.5"
Band Speeds, Infinitely Variable: 60 to 300 FPM
Load Capacity, Maximum: 2000 LBS
Blade Cutting Force, Range: 20 to 80 LBS
Blade Motor, Horsepower: 1 HP
Hydraulic Motor, Horsepower: 1/3 HP
Overall Height: 5'
Weight, Approximately: 700 LBS
