10-STAND TISHKEN “10-4-1-1” ROLL FORMER w/5 TON PREES - 5 TON CUT-OFF - 1” DIAMETER SPINDLES
Have one to sell?
$7,950.00 USD
ConditionUsed
1 available

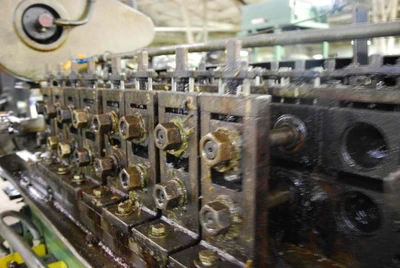

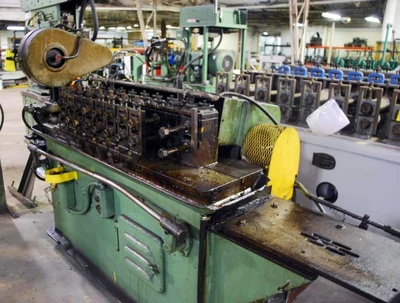

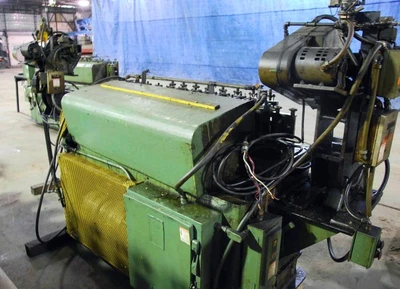

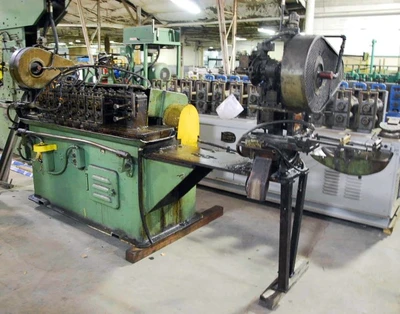

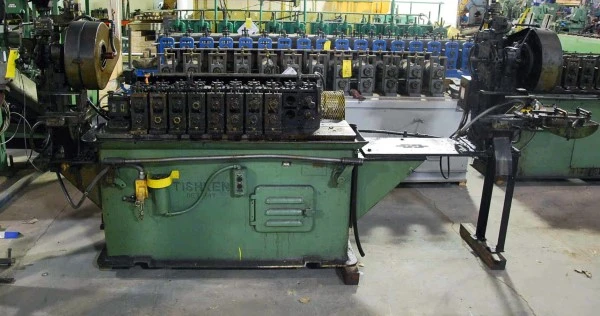

10-STAND TISHKEN ROLL FORMER
SERIAL NO. 540-640, MODEL 10-4-1-1
RIGHT TO LEFT FEED

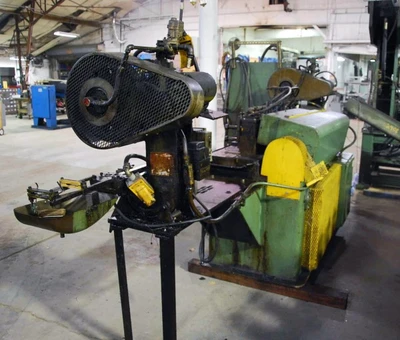

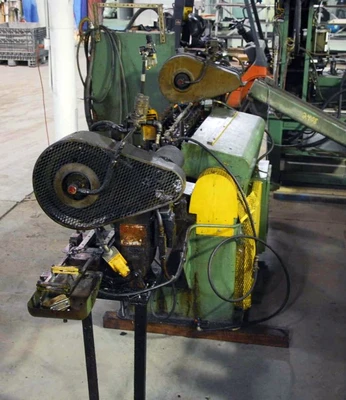

5 TON PUNCH PRESS (S/N 7920)
5 TON CUT-OFF
NOTE: MACHINE IS MISSING 2 SPINDLES AND 2 OUTBOARDS.
PRICE: F.O.B. OHIO (PERRYSBURG)
Number of stands: 10-STAND
Spindle diameters: 1"
Roll space: 3.5"
Spindle adjustable, range: 3.75" TO 3.75"
Roll center distance, horizontal: 4.5"
Top of base to lower spindle center: 3.25"
Spindle key size: .250"
Overall machine dimensions, l x d: 9'3" X 4'6"
Overall height: 4'4"
