15" X 20" MARVEL "15A4/M1" AUTOMATIC HORIZONTAL BAND SAW w/10' AUTOMATIC SHUTTLE FEED - MULTIPLE INDEXING - 1-1/4” BLADE
Have one to sell?
$9,950.00 USD
ConditionUsed
1 available

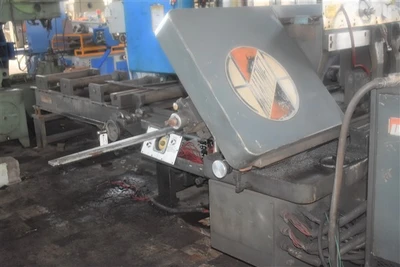

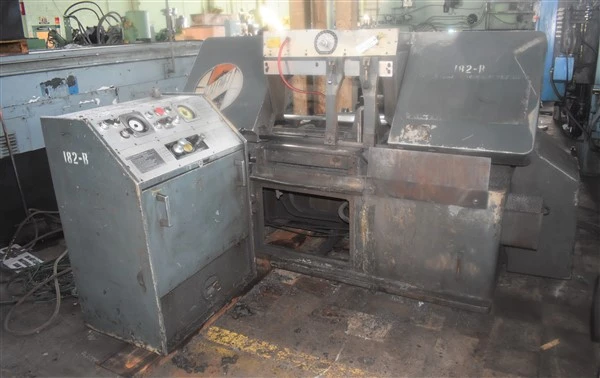

15" x 20" MARVEL AUTOMATIC HORIZONTAL BAND SAW
Serial No E-151211, Model 15A4/M1, Series 15
10' AUTOMATIC Hydraulic-Driven Stock-Feed Table
w/MULTIPLE Indexing
1-1/4" Blade Capabilities (M1)
Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Hydraulic Band Tension

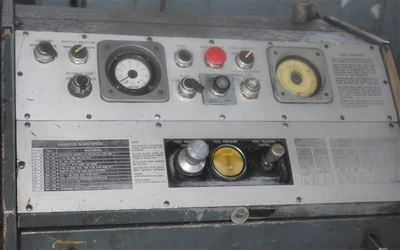

Piece Counter - Cycle Selector
Coolant System (Built-In)
Flat Stock Capacity, Maximum 15" x 20"
Band Length 15'6"
Band Width 1-1/4"
Band Thickness .042"
Shuttle Travel, One Cycle 0 to 24"
Band Speeds, Variable 50 to 400 FPM
Band Feed, Infinitely Variable 0 to 200 LBS
Load Capacity, Maximum 7000 LBS
Motor, Horsepower/RPM 5 HP/1800 RPM
Hydraulic Motor, Horsepower/RPM 2 HP/1800 RPM
Overall Dimensions, L x W 15'10" x 7'10"
Overall Height 4'4"
Weight, Approximately 6200 LBS
PRICE: F.O.B. OUR WAREHOUSE $9,950.00
Flat stock capacity, maximum: 15" X 20"
Band length: 15'6"
Band width: 1-1/4"
Band thickness: .042"
Shuttle travel, one cycle: 0 TO 24"
Band speeds, variable: 50 TO 400 FPM
Band feed, infinitely variable: 0 TO 200 LBS
Load capacity, maximum: 7000 LBS
Motor, horsepower/rpm: 5 HP/1800 RPM
Hydraulic motor, horsepower/rpm: 2 HP/1800 RPM
Overall dimensions, l x w: 15'10" X 7'10"
Overall height: 4'4"
Weight, approximately: 6200 LBS
