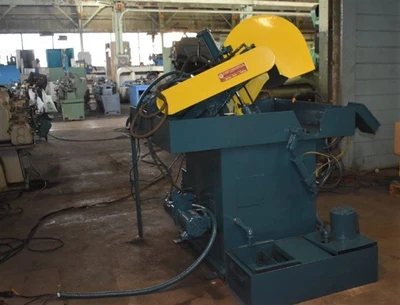

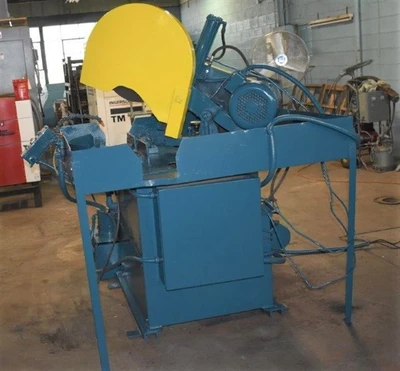

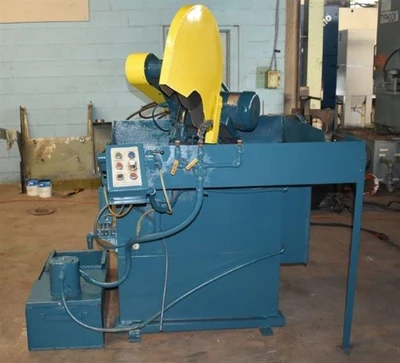

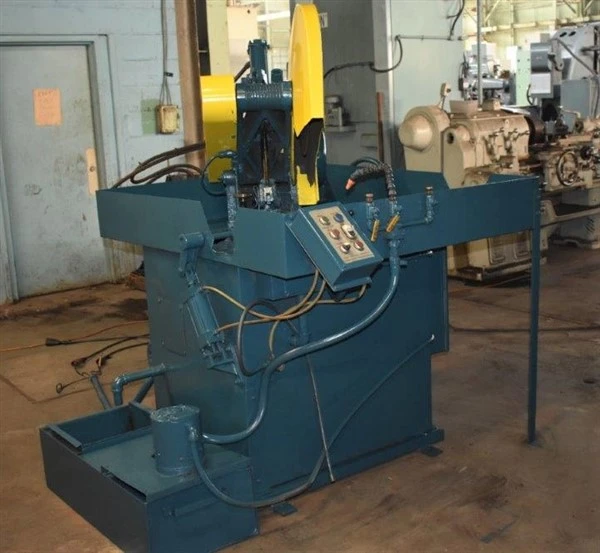

22" EVERETT #20AA22 ABRASIVE-BLADE MITERING CUT-OFF SAW w/HYDRAULIC HEAD FEED - 6" DIAMTER SHAPE CAPACITY - 3" DIAMETER SOLID CAPACITY - 20 HP MOTOR

3" EVERETT #20AA22 ABRASIVE-BLADE MITERING CUT-OFF SAW
SERIAL NO 06-10342, MODEL 20AA22

EQUIPPED WITH:
HYDRAULIC POWER FEED HEAD
AIR OPERATED "V" SHAPED CHAIN HOLDDOWN VISE
60-DEGREE ANGLE-MITRE CUTTING HEAD
COOLANT SYSTEM (TANK & PUP)

CATALOG SPECIFICATIONS:
DIAMETER CAPACITY SOLIDS, 90-DEGREES 3"
CAPACITY MOST SHAPES, 90-DEGREES 6"
DIAMETER CAPACITY SOLIDS, 45-DEGREES 2.5"
CAPACITY MOST SHAPES, 45-DEGREES 4"
SAW BLADE DIAMETER 20" OR 22"
ARBOR SHAFT DIAMETER 1"
SPINDLE MOTOR, HORSEPOWER/RPM 20 HP/3450 RPM
WEIGHT, APPROXIMATELY 850 LBS

PRICE: F.O.B. OUR WAREHOUSE
Diameter capacity solids, 90-degrees: 3"
Capacity most shapes, 90-degrees: 6"
Diameter capacity solids, 45-degrees: 2.5"
Capacity most shapes, 45-degrees: 4"
Saw blade diameter: 20" OR 22"
Arbor shaft diameter: 1"
Spindle motor, horsepower/rpm: 20 HP/3450 RPM
Weight, approximately: 850 LBS
