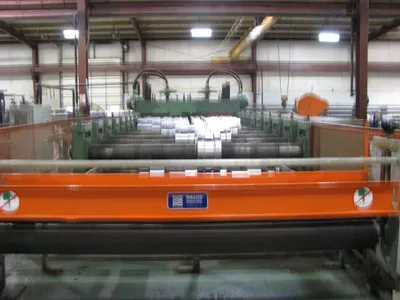

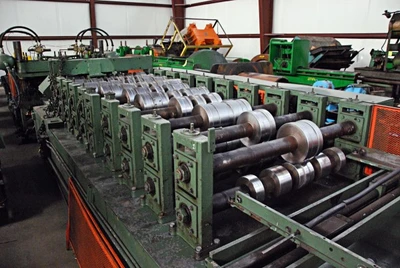

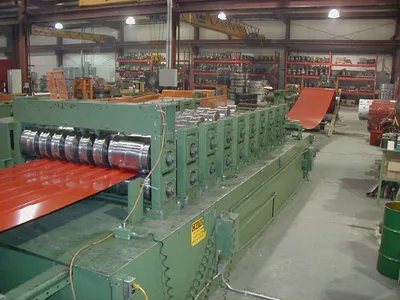

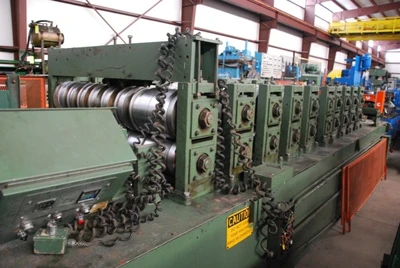

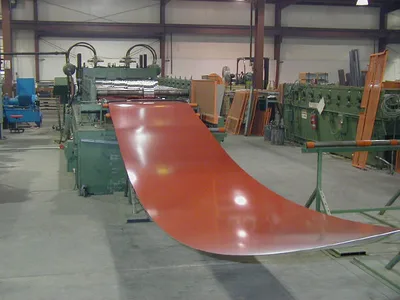

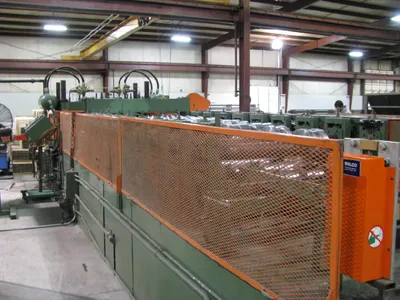

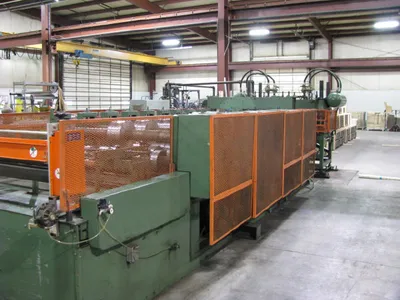

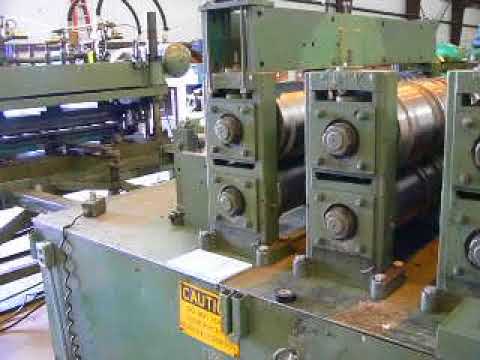

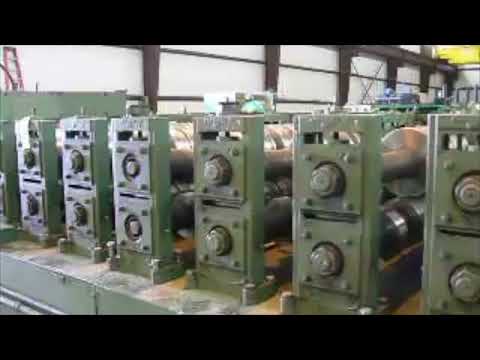

10 STAND BRADBURY “M3” PANEL ROLLFORM LINE w/UNCOILER - MASTIC APPLICATOR SYSTEM - 3” DIAMETER SPINDLES - 54” ROLL SPACE - 25 HP MOTOR - TOOLING

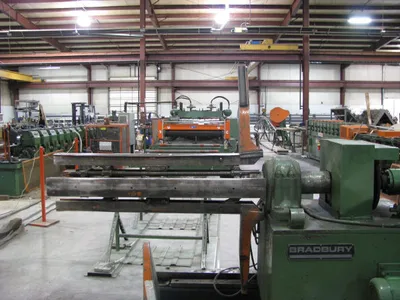

Bradbury Uncoiler

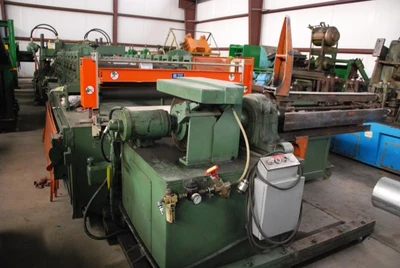

70 Ton Airam Cutoff Press w/Die Set

Mastic Applicator System

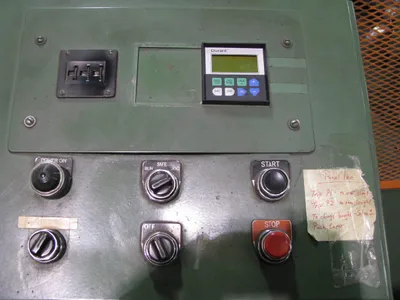

Operator Control Station w/Durant Counter & Length

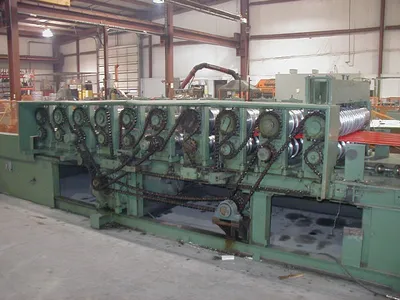

Control - Chain Drive

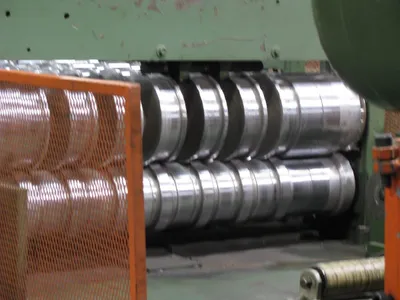

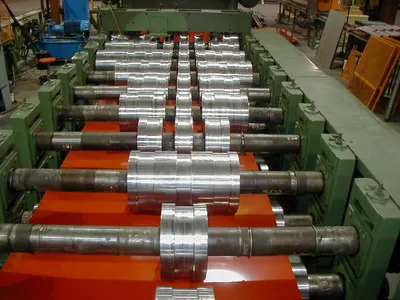

Bradbury #BCO-019 Roll Tooling For Ribbed Panel (19GA)

Right to Left Line Direction

SPECIFICATIONS:

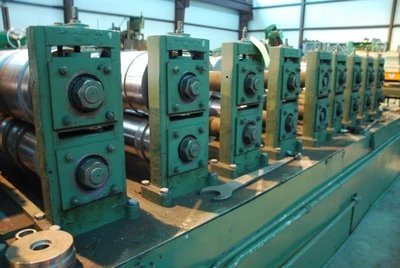

Number Of Stands 10

Spindle Diameter 3"

Roll Space, Width 54"

Horizontal Center Distance 16"

Vertical Adjustment 9" to 10"

Base to Center Lower Spindle 7-3/8"

Spindle Key Size 1/2"

Motor, Horsepower 25 HP

Electrical System 460/3/60

NOTE: The Mastic Applicator System On The Entry End

Of The Rollformer Is Capable Of Applying A Plastic

Protective Covering Onto One Side Of The Material

Prior To Being Rollformed.

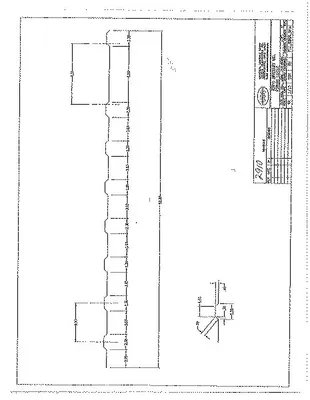

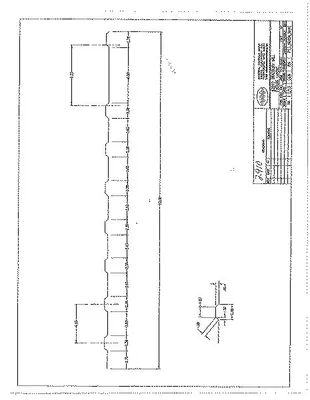

NOTE: Part Profile Drawing is in Photo File.

PRICE: F.O.B. Perrysburg, OH $49,500.00
Number of stands: 10
Spindle diameter: 3"
Roll space, width: 54"
Horizontal center distance: 16"
Vertical adjustment: 9" TO 10"
Base to center lower spindle: 7-3/8"
Spindle key size: 1/2"
Motor, horsepower: 25 HP
Electrical system: 460/3/60
