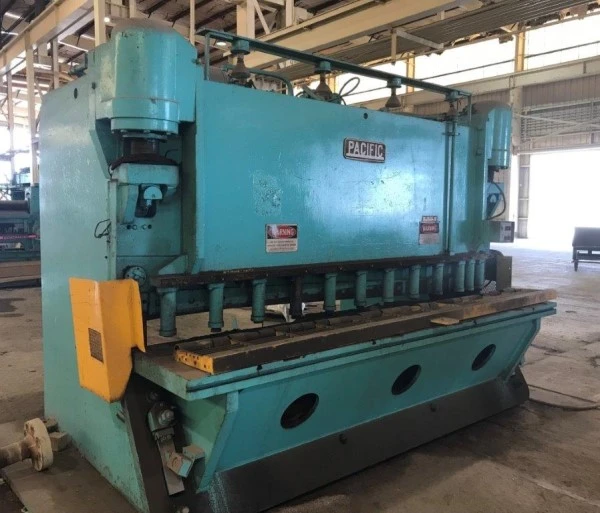

10' X 3/4” PACIFIC “600G10” HYDRAULIC POWER SQUARING SHEAR w/18” THROAT - FRONT OPERATED POWER BACK GAUGE - FLOOR STANDING DESIGN

10' X 1/2 PACIFIC HYDRAULIC POWER SQUARING SHEAR
NEW 1981, SERIAL NO 11058, MODEL 600G10,

EQUIPPED WITH:
36" POWER BACK GAUGE (FRONT OPERATED)
POWER RAKE ADJUSTMENT
HYDRAULIC HOLD-DOWNS
ADJUSTABLE KNIFE CLEARANCE
FLUSH FLOOR STANDING DESIGN

CATALOGUE SPECIFICATIONS:
Shearing Capacity, @ 3/8" Rake 10' x 1/2"
Shearing Capacity, @ 5/8" Rake 10' x 3/4"
Length Between Housings 10'3"
Throat Depth 18"
Total Hold-Down Pressure 28 TON
Ram Speed, Rapid Advance 144 IPM
Ram Speed, Normal Advance 90 IPM
Ram Speed, Rapid Return 27 IPM
Main Motor, Horsepower 40 HP
Overall Dimensions, L x D 11'8" x 7'8"
Overall Height 8'10"
Weight, Approximately 37000 LBS

PRICE: F.O.B. OUR WAREHOUSE
Shearing capacity, @ 3/8" rake: 10' X 1/2"
Shearing capacity, @ 5/8" rake: 10' X 3/4"
Length between housings: 10'3"
Throat depth: 18"
Total hold-down pressure: 28 TON
Ram speed, rapid advance: 144 IPM
Ram speed, normal advance: 90 IPM
Ram speed, rapid return: 27 IPM
Main motor, horsepower: 40 HP
Overall dimensions, l x d: 11'8" X 7'8"
Overall height: 8'10"
Weight, approximately: 37000 LBS
