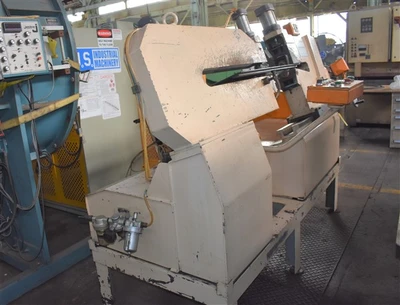

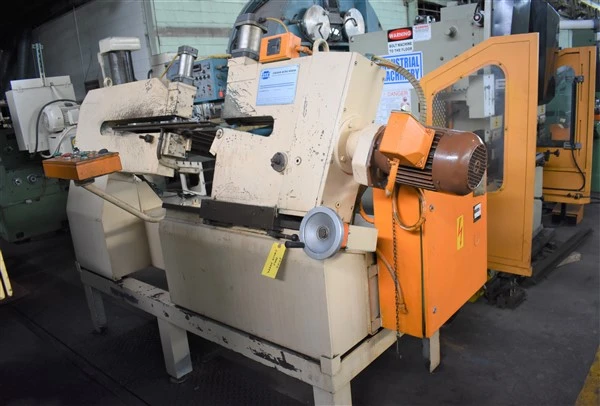

13” X 0.118” PARX (JOHANN KUNZ SOHNE) “KSM/1” HEAVY-DUTY SLANT-BED ROTARY CIRCLE SHEAR w/PNEUMATIC SWIVELING CIRCLE GUIDE - 30” THROAT

Shearing Capacity @40 KG/MM2 Tensile .118" 3 MM

Shearing Capacity @70 KG/MM2 Tensile .078" 2 MM

Throat Depth Shear, Column to Cutter 13" 325 MM

Throat Depth, Cutting Guide 29.52" 750 MM

Circle Diameter Outside Cut, Minimum 3.94" 100 MM

Circle Diameter Inside Cut, Minimum 6.3" 160 MM

Circle Diameter Square Plate, Maximum 59" 1500 MM

Circle Diameter Octog Plate, Maximum 49" 1250 MM

Width Of Strips, Maximum 10.8" 275 MM

Cutting Speed 590 IPM 15 MPM

Motor Rating 2/3 KW

Overall Dimensions, Length 112" 2800 MM

Overall Dimensions, Width 40" 1000 MM

Overall Height 52" 1300 MM

Weight Approximately 1320 LBS 600 KG

NOTE: THIS MACHINE WAS DESIGNED TO PRODUCE ROUNDS AND
RINGS IN BATCH AND LONG PRODUCTION RUNS. IT CAN BE
OPERATED FROM A SITTING POSITION AND A WORKING RATE
CAN BE ACHIEVED. THE SLANT-BED DESIGN ALLOWS THE
SCRAP TO FALL AWAY INTO A SCRAP BIN AT THE REAR
OF THE MACHINE.

PRICE: F.O.B. OUR WAREHOUSE
Shearing capacity @40 kg/mm2 tensile: .118" 3 MM
Shearing capacity @70 kg/mm2 tensile: .078" 2 MM
Throat depth shear, column to cutter: 13" 325 MM
Throat depth, cutting guide: 29.52" 750 MM
Circle diameter outside cut, minimum: 3.94" 100 MM
Circle diameter inside cut, minimum: 6.3" 160 MM
Circle diameter square plate, maximum: 59" 1500 MM
Circle diameter octog plate, maximum: 49" 1250 MM
Width of strips, maximum: 10.8" 275 MM
Cutting speed: 590 IPM 15 MPM
Motor rating: 2/3 KW
Overall dimensions, length: 112" 2800 MM
Overall dimensions, width: 40" 1000 MM
Overall height: 52" 1300 MM
Weight approximatley: 1320 LBS 600 KG
