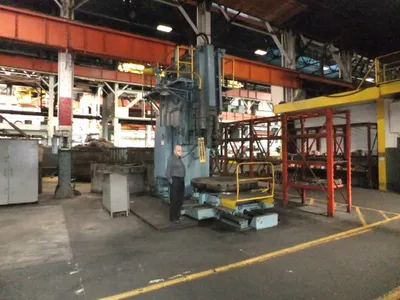

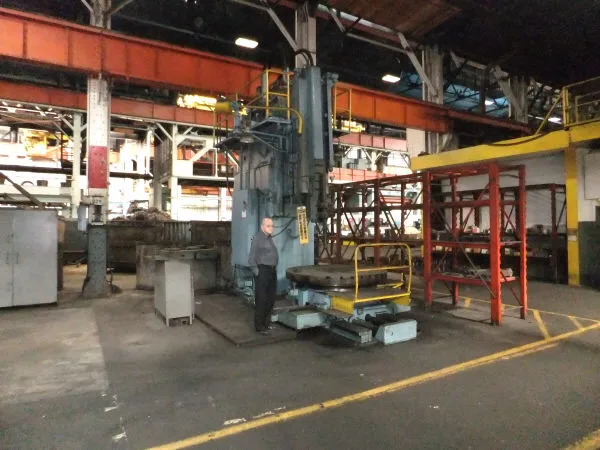

48" ROCKFORD “SM48” VERTICAL HYDRAULIC SLOTTER w/72” DIAMETER OVERSIZED ROTARY TABLE - EXTENDED LONGITUDINAL TABLE TRAVEL

Rotary Table Diameter 72"

Stroke Length, Rated 48"

Stroke Length, Minimum 8"

Stroke Length, Maximum 52.75"

Toolhead Face to Column 40"

Ram Guide Vertical Adjustment, Maximum 26"

Table to Ram Guide, Maximum 55"

Table to Tool Head, Minimum (Guide Dn) 1.75"

Table to Tool Head, Maximum (Guide Up) 70.5"

Table Longitudinal Travel, Maximum 60"

Table Cross Travel, Maximum 42"

Ram Angle Adjustment, Minimum 0-Degrees

Ram Angle Adjustment, Maximum 10-Degrees

Cutting Force, Maximum 18000 LBS

Cutting Speed, Range 0 to 160 FPM

Table Longitudinal Feed, Range .002 to .160"

Table Transverse Feed, Range .002 to .160"

Table Rotary Feed (16" Circle) .002 to .135"

Main Motor, Horsepower 40 HP

Floor Space Required, W x D 10' x 19'

Overall Height 20'6"

Weight, Approximately 70000 LBS

PRICE: F.O.B. HOMESTEAD, PA
Rotary table diameter: 72"
Stroke length, rated: 48"
Stroke length, minimum: 8"
Stroke length, maximum: 52.75"
Toolhead face to column: 40"
Ram guide vertical adjustment, maximum: 26"
Table to ram guide, maximum: 55"
Table to tool head, minimum (guide dn): 1.75"
Table to tool head, maximum (guide up): 70.5"
Table longitudinal travel, maximum: 60"
Table cross travel, maximum: 42"
Ram angle adjustment, minimum: 0-DEGREES
Ram angle adjustment, maximum: 10-DEGREES
Cutting force, maximum: 18000 LBS
Cutting speed, range: 0 TO 160 FPM
Table longitudinal feed, range: .002 TO .160"
Table transverse feed, range: .002 TO .160"
Table rotary feed (16" circle): .002 TO .135"
Main motor, horsepower: 40 HP
Floor space required, w x d: 10' X 19'
Overall height: 20'6"
Weight, approximately: 70000 LBS
