16" TSUDAKOMA ”RY-401” HORIZONTAL CNC ROTARY TABLE w/HYDRAULIC CLAMPING - FANUC SERVO-MOTOR

16" TSUDAKOMA HORIZONTAL CNC ROTARY TABLE

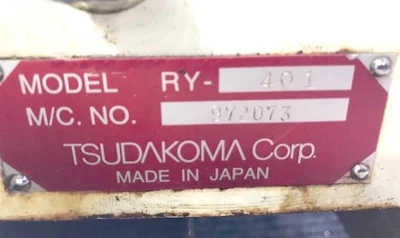

New 2005, Serial No 972073, Model RY-401

EQUIPPED WITH:
Hydraulic Table Clamping - Sub-Plate

CATALOG SPECIFICATIONS:
Working Surface Diameter 15.79"
Table Diameter 15.79"
Weight Capacity, Maximum 1430 LBS
Distance Base to Top of Table 10.23"
Distance Base to Top of Sub-Plate 11.8"
Table Speed, Maximum 66.7 RPM
Clamp Force 1400 FT/LBS
Table Positions 360000-POSITIONS
Dimensions Approximately, L x W 31" x 18"
Height, Approximately 11.8"
Weight, Approximately 700 LBS

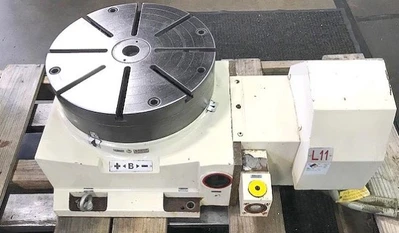

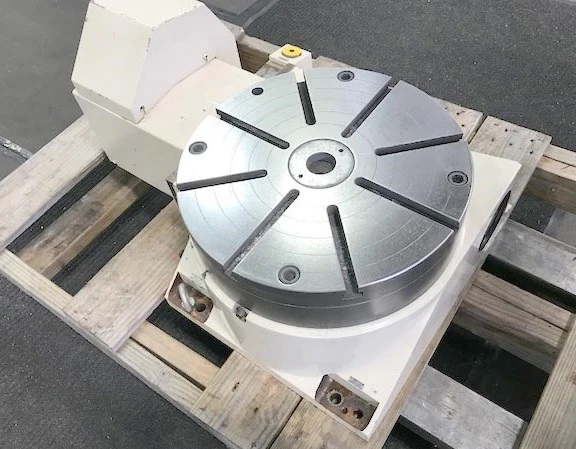

TABLE DESCRIPTION: This Horizontal CNC Rotary Table Was
Designed For Full Contour Milling Or Indexing Of Parts.
The Table Is Driven By A Fanuc Electric Servo-Motor
With Resolver Feed Back Which Could Be Driven By Most
Fanuc CNC Controls. This Table Is Also Equipped With

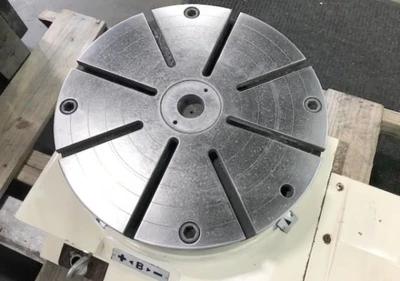

A Hydraulic Table Clamp. For Work Holding It Has A
15.79" Round By 1.5" Thick T-Slotted Sub-Plate Work
Mounting Surface. Table Was Taken Off A Machining
Center With A Fanuc 18i CNC Control. Appears To Be
In Excellent Condition!

PRICE: F.O.B. CINCINNATI, OHIO $17,500.00
Working surface diameter: 15.79"
Table diameter: 15.79"
Weight capacity, maximum: 1430 LBS
Distance base to top of table: 10.23"
Distance base to top of sub-plate: 11.8"
Table speed, maximum: 66.7 RPM
Clamp force: 1400 FT/LBS
Table positions: 360000-POSITIONS
Dimensions approximately, l x w: 31" X 18"
Height, approximately: 11.8"
Weight, approximately: 700 LBS
