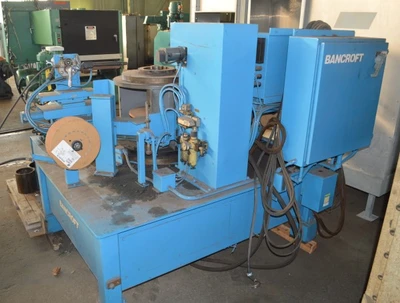

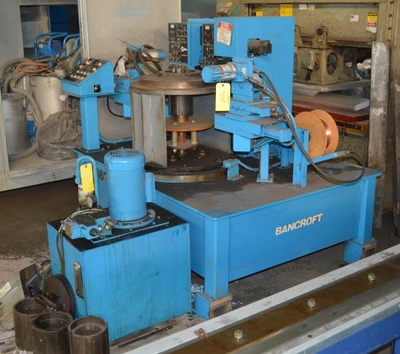

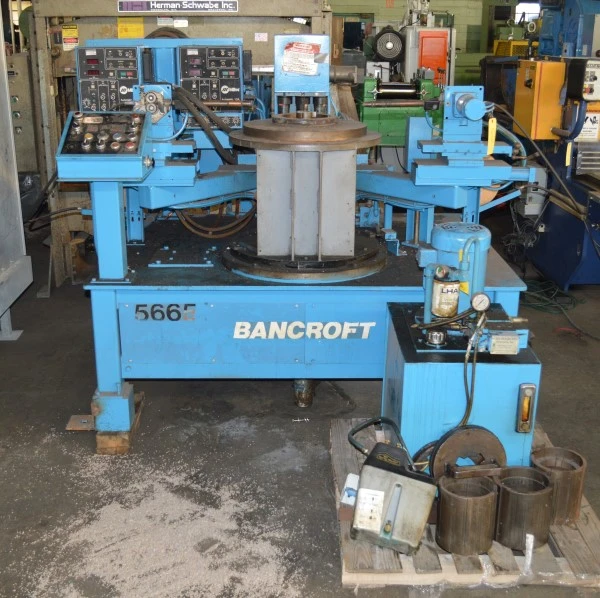

8 TON BANCROFT DUAL HEAD AUTOMATIC STATOR CORE WELDER w/30” DIAMETER INDEXING TABLE - MILLER WELDING EQUIP

Clamping Force, Maximum 8 TONS

Indexing Table Diameter 30"

Number Of Indexing Transitions 2 to 8

Vertical Stroke of Table 12"

Torch Retraction, Pneumatic 4"

Hydraulic Motor, Horsepower 5 HP

NOTE: This Machine Was Originally Designed To Join

Stator Laminations Together Through Welds Located

In Slots In The Lamination Stack. The Stack Of

Laminations Is Mounted On A Hydraulic Mandrel With

The Armature Hole Vertical In The Tooling. Two Mig

Torches Are Used To Lay Welds In Two Slots

Simultaneously. Both Torches Move Vertically On A

Common Motorized Slide With A Programmable Travel.

This Machine Was Originally Shipped With (2) Miller

Delta 451 Power Sources Which We Did Not Get.

PRICE: F.O.B. OUR WAREHOUSE $4,950.00
Clamping force, maximum: 8 TONS
Indexing table diameter: 30
Number of indexing transitions: 2 TO 8
Vertical stroke of table: 12"
Torch retraction, pneumatic: 4"
Hydraulic motor, horsepower: 5 HP
