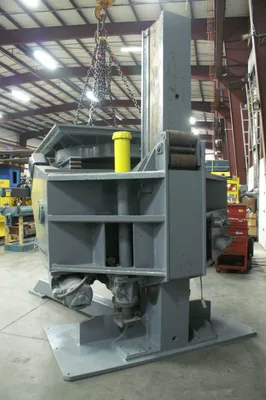

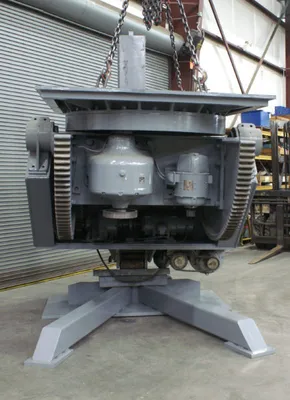

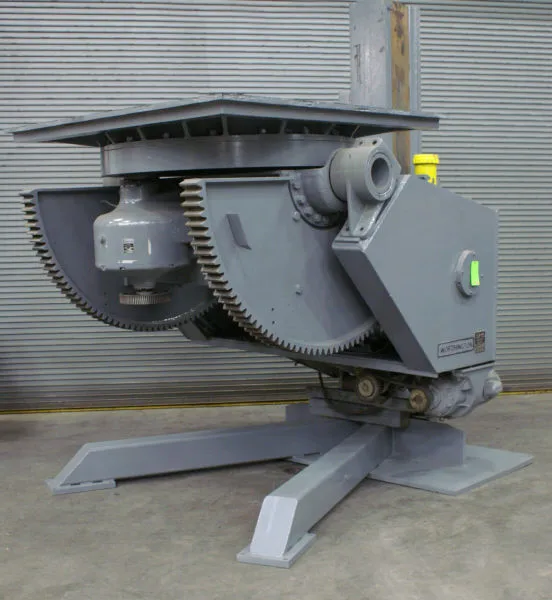

40000 LB WORTHINGTON “400P” VARIABLE SPEED WELDING POSITIONER w/84” X 84” TABLE - POWER TABLE ELEVATION - PENDANT CONTROLS

Table Dimensions (Overall) W x L 84" x 84"

Table Weight at 12" C.G and 12" ECC 40000 LBS

Rotational Torque, Inch Pounds 480000 LBS

Tilt Torque, Inch Pounds 940000 LBS

Table Rotation, Degrees 360-DEGREES

Table Tilt, Degrees 135-DEGREES

Table Speed Variable, Range .2 to 3.0 RPM

Table Height, Adjustable Range 67" to 85"

Vertical Table Travel, Powered 48"

Weight Approximately 28000 LBS

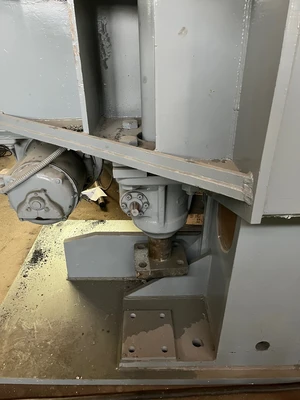

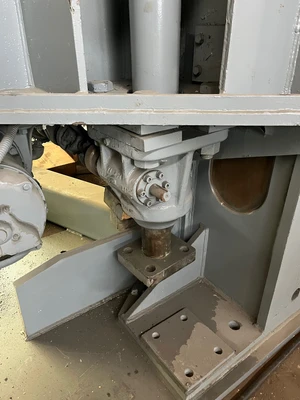

NOTE: THIS MACHINE WAS ORIGINALLY FLOOR MOUNTED AT A GOVERNMENT FACILITY. PREVIOUS OWNER BUILT A BASE BUT THE BASE WAS NOT BUILT CORRECTLY. WE ARE SELLING AS IS.

F.O.B. OUR WAREHOUSE
Table dimensions (overall) w x l: 84" X 84"
Table weight at 12" c.g and 12" ecc: 40000 LBS
Rotational torque, inch pounds: 480000 LBS
Tilt torque, inch pounds: 940000 LBS
Table rotation, degrees: 360-DEGREES
Table tilt, degrees: 135-DEGREES
Table speed variable, range: .2 TO 3.0 RPM
Table height, adjustable range: 67" TO 85"
Vertical table travel, powered: 48"
Weight approximately: 28000 LBS
