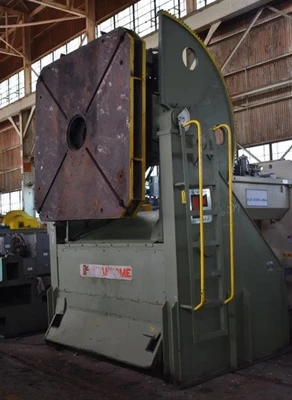

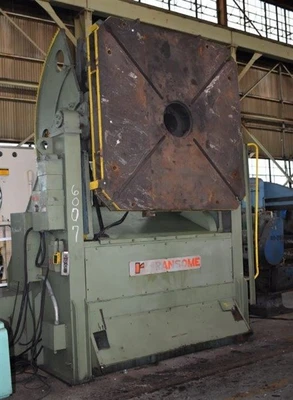

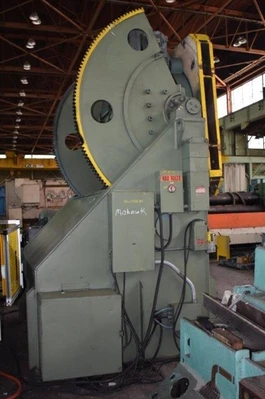

35,100/60,000 LB RANSOME “600P” EXTRA HEAVY-DUTY VARIABLE SPEED WELDING POSITIONER w/72” X 72” TABLE - PENDANT CONTROL

Table Dimensions, L x W 72" x 72"

Table Weight At 12" C.G. 16" Eccentricity 35,100 LBS

Table Rotation, Degrees 360-DEGREES

Table Tilt, Forward 90-DEGREES

Table Tilt, Reverse 45-DEGREES

Table Speed Variable, Range .008 to .32 RPM

Rotation Motor, Horsepower 7.5 HP/1760 RPM

Electrical System 230-460/3/60

Overall Dimensions, L-R x F-B 126" x 120"

Overall Height, Table Flat 120"

NOTE: THIS 600P WELDING POSITIONER IS NORMALLY RATED FOR
60000 LB CAPACITY HOWEVER THIS MACHINE WAS SPECIALLY
DESIGNED FOR THE GOVERNMENT WITH EXTRA HEIGHT AND IS
CURRENTLY RATED FOR 35,100 LB CAPACITY @12" C.G. AND
16" ECCENTRICITY. THE CATALOG RATING USUALLY STARTS
AT 12" ECCENTRICITY. MACHINE APPEARS TO BE IN VERY
GOOD CONDITION.

PRICE: F.O.B. OUR WAREHOUSE
Table dimensions, l x w: 72" X 72"
Table weight at 12" c.g. 16" eccentricity: 35,100 LBS
Table rotation, degrees: 360-DEGREES
Table tilt, forward: 90-DEGREES
Table tilt, reverse: 45-DEGREES
Table speed variable, range: .008 TO .32 RPM
Rotation motor, horsepower: 7.5 HP/1760 RPM
Electrical system: 230-460/3/60
Overall dimensions, l-r x f-b: 126" X 120"
Overall height, table flat: 120"
