.375" EDWARD SEGAL "83LR" LEFT TO RIGHT EYELET MACHINE - .091' to .375" BARREL DIAMETER RANGE - 2.75" STROKE - DUAL RACEWAYS

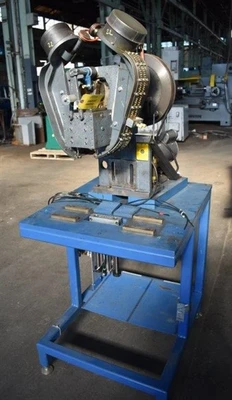

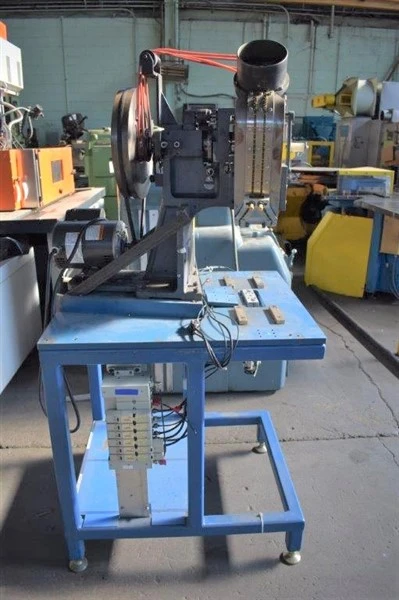

83LR EDWARD SEGAL "LEFT TO RIGHT" EYELET MACHINE
Model 83LR

EQUIPPED WITH:
Dual Raceways
Left to Right Feed
Adjustable Work Stand

CATALOG SPECIFICATIONS:
Eyelet Barrel Diameter, Range .091" to .375"
Flange Diameter, Maximum .428"
Standard Stroke 2.75"
Throat Depth 7.25"
Flywheel Speed 200 RPM
Motor Horsepower 1/2 HP
Electrical System 115-208/220/1/60

NOTE: This Machine Has The Ability to Simultaneously
Feed And Set 4 Eyelets At A Time.

PRICE: F.O.B. OUR WAREHOUSE
Throat depths: 6" & 10"
Motor horsepower: 1/2 HP
Electrical system: 115-208/220/1/60
Overall dimensions, w x d: 27" X 32"
Overall height: 67"
