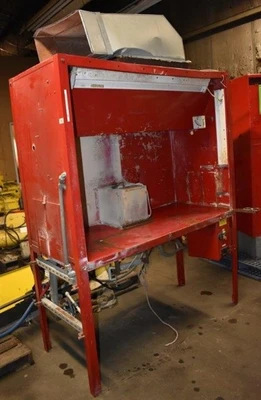

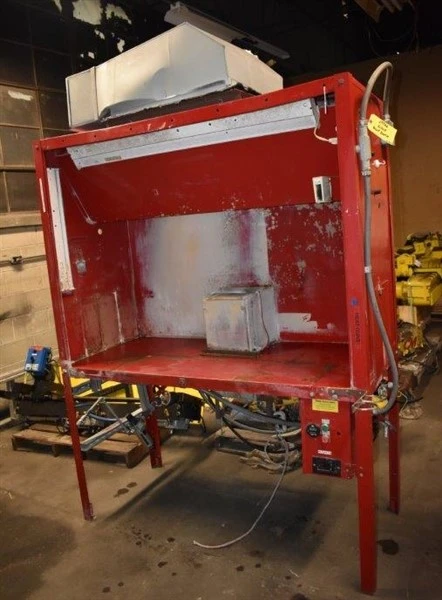

60" X 26" X 44" MICRO AIR BENCH-TYPE PAINT SPRAY BOOTH W/OM3500 MICRO AIR CLEANER OIL MIST COLLECTOR

60" X 26" X 44" MICRO AIR BENCH-TYPE PAINT SPRAY BOOTH W/OM3500 MICRO AIR CLEANER OIL MIST COLLECTOR
SERIAL NO 36433, MODEL OM3500

EQUIPPED WITH:

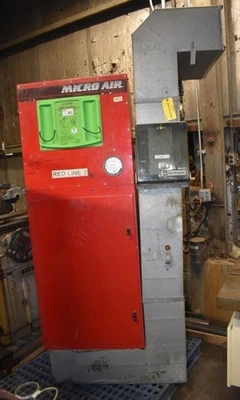

#OM3500 MICRO AIR CLEANER OIL MIST COLLECTOR
W/MAGNEHELIC GAUGING
ELECTRICAL CONTROLS
Hour Meter
FABRICATED BENCH

CATALOG SPECIFICATIONS:
Booth Inside Dimensions, L-R 60"
Booth Inside Dimensions, F-B 25.5"
Booth Inside Dimensions, H 44"
Height Table To Shield 27.5"
#OM3500 MICRO AIR COLLECTOR SPECIFICATIONS:
CFM Rating 3500 CFM
23.375 x23.375 x 12 Glasfloss Replacement Filter
(Part No MAGPB23F23FB5AX, Magna 100 Series)
Cabinet Dimensions, L-R x F-B 26" x 25"
Cabinet Height 66"
Overall System Height w/Duct Work 92"

NOTE: THIS AIR CLEANER CAN BE USED FOR WELDING SMOKE
AND FUMES, MACHINING MIST & SMOKE, METALWORKING DUST,
AND SOURCE CAPTURE.

PRICE: F.O.B. OUR WAREHOUSE
Booth inside dimensions, l-r: 60"
Booth inside dimensions, f-b: 25.5"
Booth inside dimensions, h: 44"
Height table to shield: 27.5"
Cfm rating: 3500 CFM
(part no magpb23f23fb5ax, magna: 100 SERIES)
Cabinet dimensions, l-r x f-b: 26" X 25"
Cabinet height: 66"
Overall system height w/duct work: 92"
