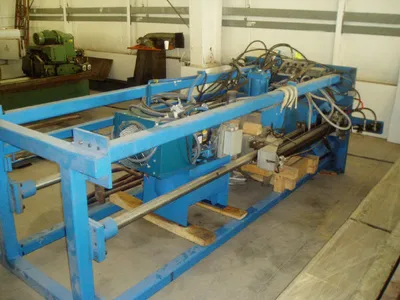

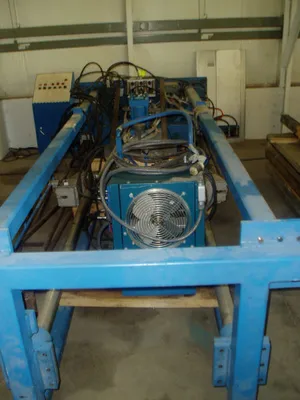

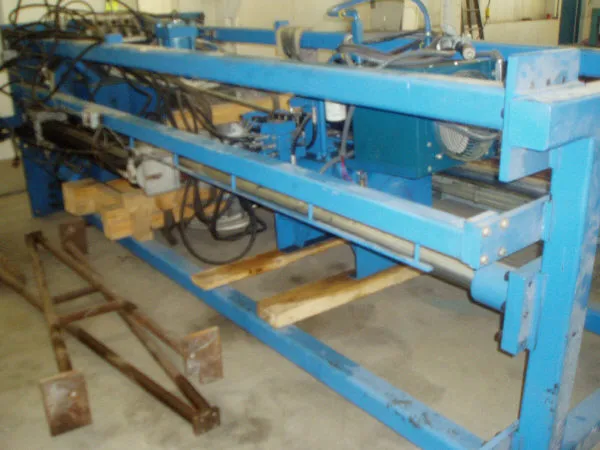

200 LB M/RAD CORPORATION “2424(200)” SHOCK TEST MACHINE - ACCELERATED FEE FALL - HYDRAULIC LIFTING - 8000 LS SEISMIC WEIGHT MASS - 24” X 24” TABLE

Table Dimensions, L x W 24" x 24"

Payload Weight, Maximum 200 LBS

Bare Table Weight 500 LBS

Seismic Mass Weight 8000 LBS

Specimen Height, Maximum Limited To Ceiling

Acceleration w/Bungee Accelerators 1750g @ 1 ms

Terminal Velocity, Maximum 60 IPS

Pulse Duration, Minimum 1 ms

Electrical System 480/3/60

NOTE: THIS MACHINE IS BEING OFFERED SERVICED, CYCLED,
AND GUARANTEED.

PRICE: F.O.B. MICHIGAN (WARREN)
Table dimensions, l x w: 24" X 24"
Payload weight, maximum: 200 LBS
Bare table weight: 500 LBS
Seismic mass weight: 8000 LBS
Specimen height, maximum: LIMITED TO CEILING
Acceleration w/bungee accelerators: 1750G @ 1 MS
Terminal velocity, maximum: 60 IPS
Pulse duration, minimum: 1 MS
Electrical system: 480/3/60
