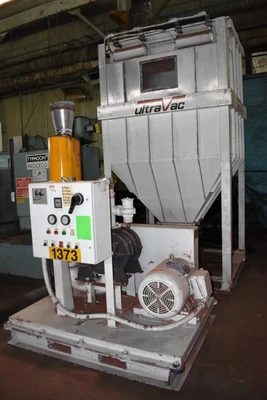

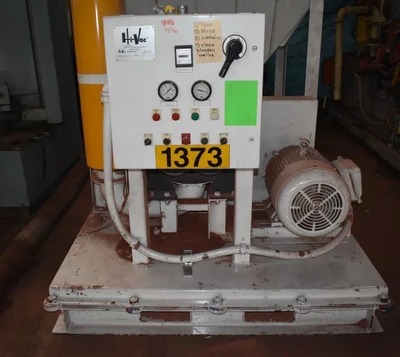

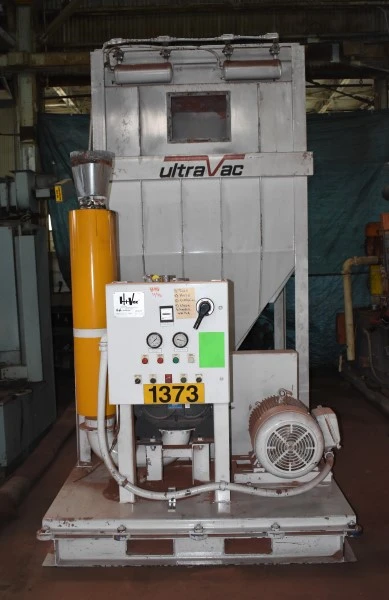

40 HP ULTRA-VAC “402SP” INDUSTRIAL VACUUM SYSTEM - 1060 CFM - COLLECTION HOPPER - 48 REMOVABLE FILTERS/FILTRATION SYSTEM - CONTROL PACKAGE

Vacuum Rating 15" HG 0.508 BAR

Material Collection Hopper, Capacity 2 CU YD 1.5 M3

Number Of Filter Assemblies 48

Filter Area 276 SQ FT 25.7 M2

Air Volume, No Load 1060 CFM 30 M3/MIN

Air Volume, Max Load 850 CFM 24 M3/MIN

Conveying Rate, Nominal 190 LB/MIN

Conveying Rate, Maximum 375 LB/MIN

Conveying Distance, Nominal 125'

Conveying Distance, Maximum 250'

Motor Horsepower 40 HP 30 KW

NOTE: THIS ULTRA-VAC MODEL 402SP IS A HEAVY DUTY,
STATIONARY INDUSTRIAL VACUUM LOADER CONSISTING OF
A POWER MODULE, A FILTRATION SYSTEM, A MATERIAL
COLLECTION HOPPER, AND A FRAME. THE UNIT HAS
7735 HOURS ON THE METER WITH A REPLACEMENT
PRICE OF $71,000.00.

PRICE: F.O.B. OUR WAREHOUSE
Vacuum rating: 15" HG 0.508 BAR
Material collection hopper, capacity: 2 CU YD 1.5 M3
Number of filter assemblies: 48
Filter area: 276 SQ FT 25.7 M2
Air volume, no load: 1060 CFM 30 M3/MIN
Air volume, max load: 850 CFM 24 M3/MIN
Conveying rate, nominal: 190 LB/MIN
Conveying rate, maximum: 375 LB/MIN
Conveying distance, nominal: 125'
Conveying distance, maximum: 250'
Motor horsepower: 40 HP 30 KW
