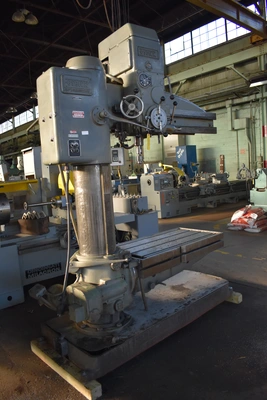

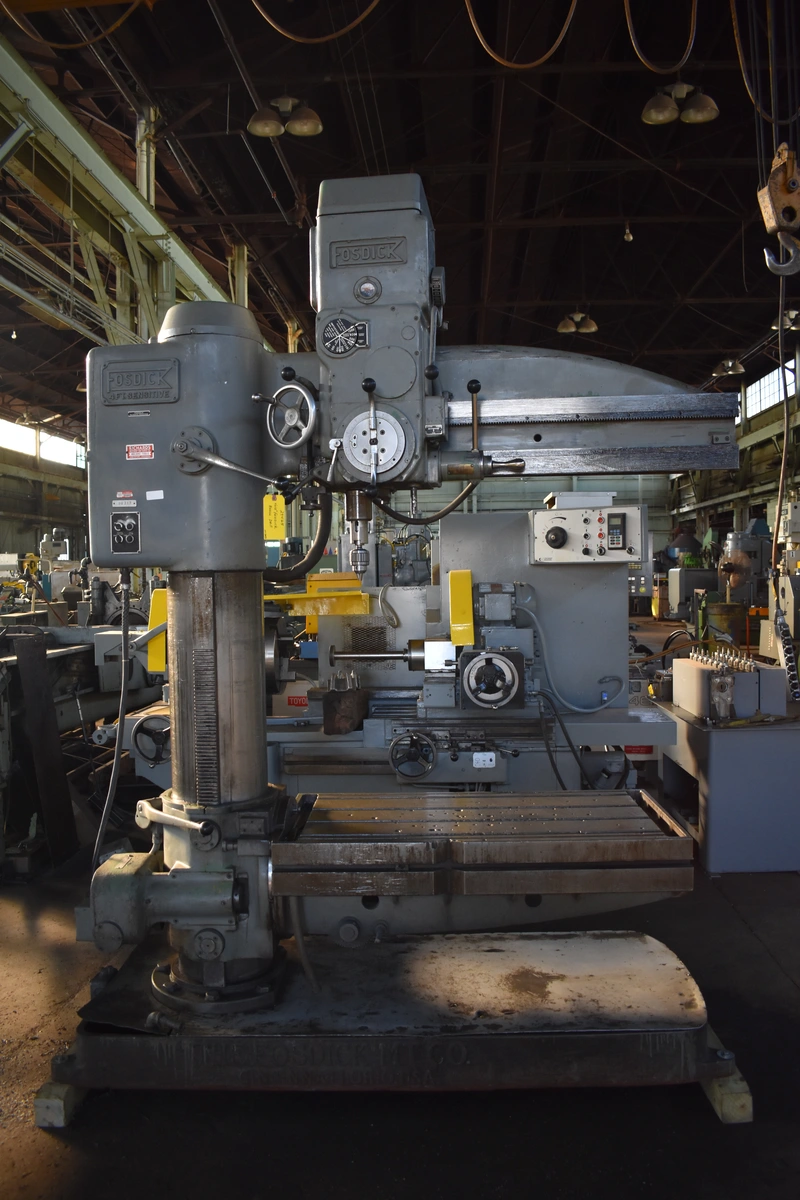

4'12" FOSDICK "SENSITIVE" RADIAL DRILL w/ROTATING TABLE

Arm Length . . . . . . . . .4'

Column Diameter . . . . . . . . .12"

Horizontal Head Travel on Arm . . . . . . . . .39"

Vertical Spindle Travel in Head . . . . . . . . .12"

Vertical Table Travel . . . . . . . . .16.5"

Spindle-Nose to Base, Minimum . . . . . . . . .33"

Spindle-Nose to Base, Maximum . . . . . . . . .45"

Spindle-Nose to Table, Maximum . . . . . . . . .23.25"

Column-Face to Spindle, Minimum . . . . . . . . .9"

Column-Face to Spindle, Maximum . . . . . . . . .48"

Table Working Surface, W x L . . . . . . . . .24" x 48"

Base Working Surface, W x L . . . . . . . . .30" x 53"

Base Height . . . . . . . . .6.25"

Spindle Nose Diameter . . . . . . . . .2"

Spindle Taper . . . . . . . . . #4 MT

(9) Spindle Speeds, Range . . . . . . . . .60 to 1200 RPM

(4) Spindle Feeds, Range . . . . . . . . . .002 to .010 IPR

Motor, Horsepower . . . . . . . . . 3 HP

Electrical System . . . . . . . . . 220-440/3/60

Extreme Height, Head & Arm Extended . . . . . . . . . 8'1"

Weight, Approximately . . . . . . . . . 4950 LBS

F.O.B. OUR WAREHOUSE
Arm Length: 4'
Column Diameter: 12"
Vertical Table Travel: 16.5"
Spindle-Nose to Base, Minimum: 33"
Spindle-Nose to Base, Maximum: 45"
Spindle-Nose to Table, Maximum: 23.25"
Column-Face to Spindle, Minimum: 9"
Column-Face to Spindle, Maximum: 48"
Base Height: 6.25"
Spindle Nose Diameter: 2"
Spindle Taper: #4 MT
(9) Spindle Speeds, Range: 60 to 1200 RPM
(4) Spindle Feeds, Range: 002 to .010 IPR
Motor, Horsepower: 3 HP
Electrical System: 220-440/3/60
Weight, Approximately: 4950 LBS
