12' x 3/4" CINCINNATI-INC "6SE 12" CNC HYDRAULIC SHEAR w/CINCINNATI MICROCOMPUTER GAGE CONTRL - SHEET STACKER - SQUARING ARM -(2) FRONT SUPPORTS
Have one to sell?
$49,500.00 USD
ConditionUsed
1 available

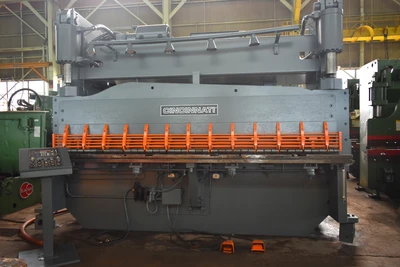

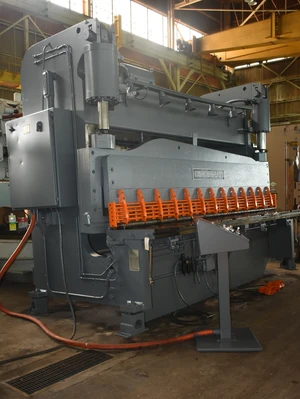

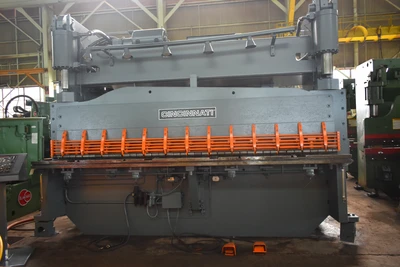

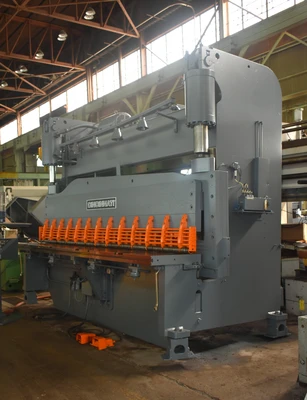

12' x 3/4" CINCINNATI-INC CNC HYDRAULIC POWER SQUARING SHEAR

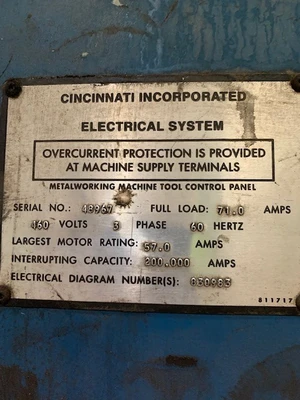

Serial No 48967, Model 6SE12

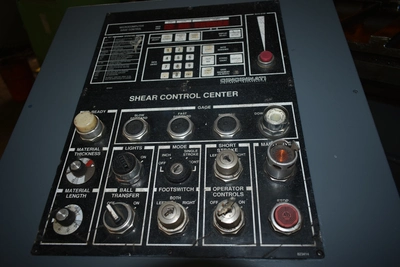

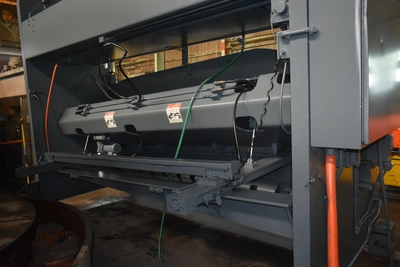

Cincinnati Microcomputer Gage Control (Power Back Gauge)

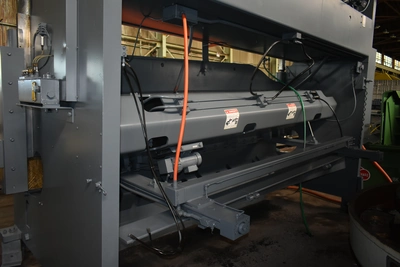

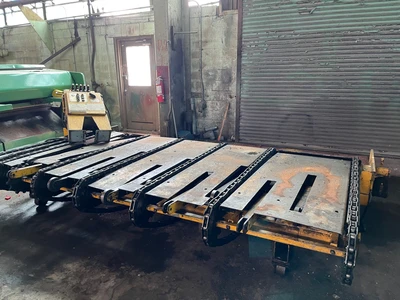

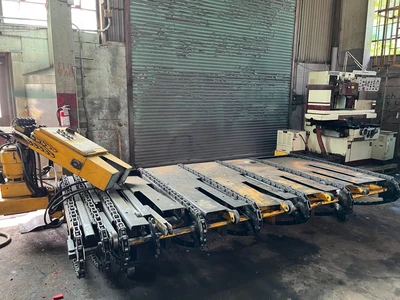

Cincinnati Inc Heavy-Duty Sheet Stacker (S/N 48968)

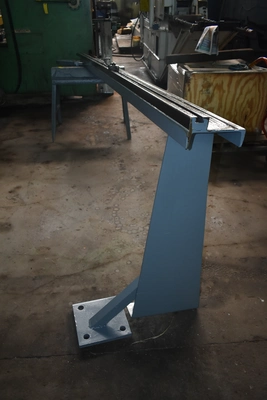

(1) Squaring Arm

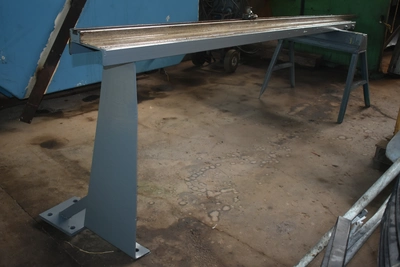

(2) Front Supports
Ball Rollers In Table
(15) Hydraulic Hold-Downs
Automatic Pressure Lubrication System
Shearing Capacity, Mild Steel . . . . . . . . . 12' x 3/4"
Length Between Housings . . . . . . . . . 12'3"
Knife Size . . . . . . . . . 1-1/8" x 5"
Rake Angle, Maximum . . . . . . . . . 11/16"
Total Hold-Down Pressure . . . . . . . . . 47.5 TON
Ram Speed, Load Down . . . . . . . . . 120 IPM
Ram Speed, Up . . . . . . . . . 258 IPM
Strokes Per Minute, Maximum . . . . . . . . . 24 SPM
Strokes Per Minute, Minimum . . . . . . . . . 7 SPM
Motor, Horsepower . . . . . . . . . 50 HP
Overall Dimensions, L x W . . . . . . . . . 180" x 101"
Weight Approximately . . . . . . . . . 46,700 LBS
F.O.B. OUR WAREHOUSE
Shearing Capacity, Mild Steel: 12' x 3/4"
Length Between Housings: 12'3"
Knife Size: 1-1/8" x 5"
Rake Angle, Maximum: 11/16"
Total Hold-Down Pressure: 47.5 TON
Ram Speed, Load Down: 120 IPM
Ram Speed, Up: 258 IPM
Strokes Per Minute, Maximum: 24 SPM
Strokes Per Minute, Minimum: 7 SPM
Motor, Horsepower: 50 HP
