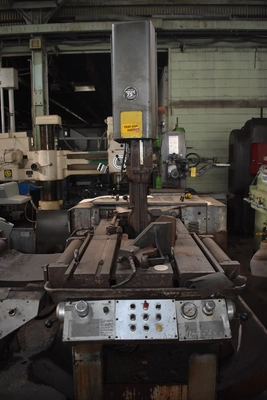

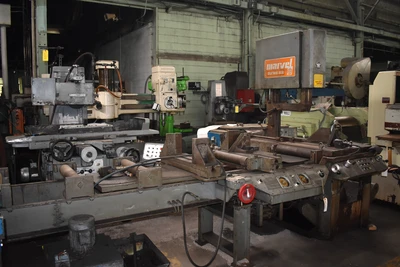

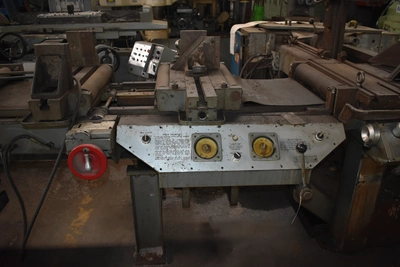

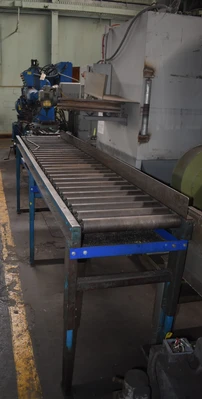

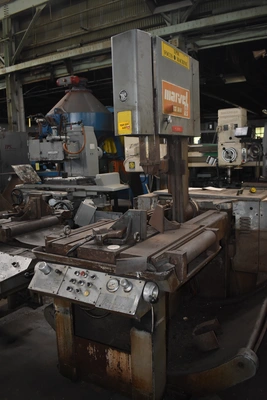

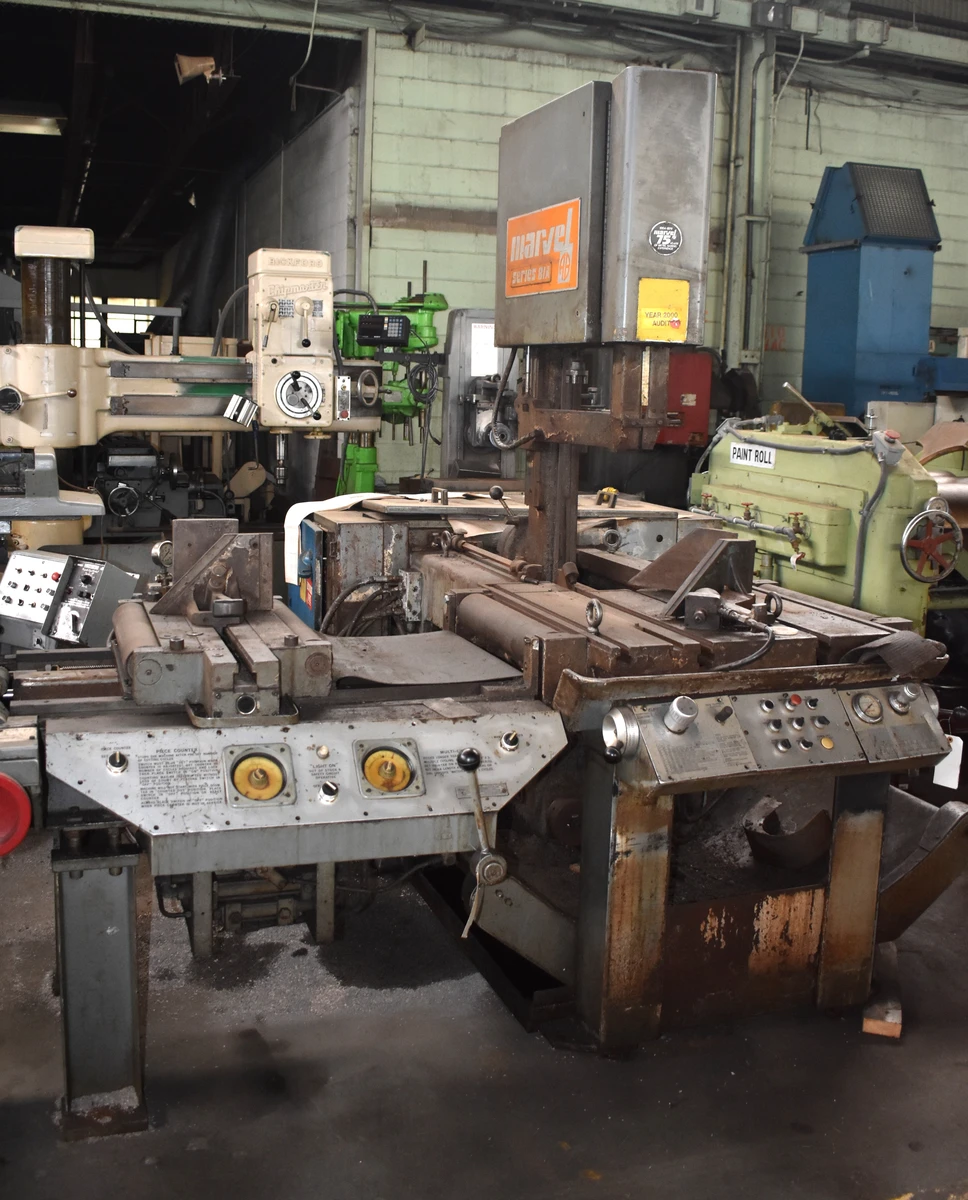

18" X 20" MARVEL "81A8/M5/M8" UNIVERSAL TILTING-HEAD AUTOMATIC VERTICAL BAND SAW w/10' AUTOMATIC MULTI-CYCLE SHUTTLE FEED

Capacity, Nominal . . . . . . . . . 18" x 20"

Capacity 45 Degree Blade Angle, Left . . . . . . . . . 18" x 11-1/2"

Capacity 45 Degree Blade Angle, Right . . . . . . . . . 18" x 13-1/2"

Automatic Feed Length Maximum, One Index . . . . . . . . . 24"

Table Working Surface, W x L . . . . . . . . . 30" x 33"

Shuttle Load Capacity . . . . . . . . . 7000 LBS

Vise Opening, Maximum . . . . . . . . . 21-1/2"

Blade Length . . . . . . . . . 14'6"

Blade Width . . . . . . . . . 1-1/4"

Blade Thickness . . . . . . . . . .042"

Blade Speeds, Infinitely Variable . . . . . . . . . 60 to 400 FPM

Feed Range, Infinitely Variable . . . . . . . . . 0 to 300 LBS

Main Motor Horsepower . . . . . . . . . 10 HP

Floor Space Required, L x W . . . . . . . . . 20' x 7'4"

Overall Height . . . . . . . . . 7'6"

Weight, Approximately . . . . . . . . . 8750 LBS

F.O.B. OUR WAREHOUSE
Capacity, Nominal: 18" x 20"
Shuttle Load Capacity: 7000 LBS
Vise Opening, Maximum: 21-1/2"
Blade Length: 14'6"
Blade Width: 1-1/4"
Blade Thickness: 042"
Blade Speeds, Infinitely Variable: 60 to 400 FPM
Feed Range, Infinitely Variable: 0 to 300 LBS
Main Motor Horsepower: 10 HP
Overall Height: 7'6"
Weight, Approximately: 8750 LBS
