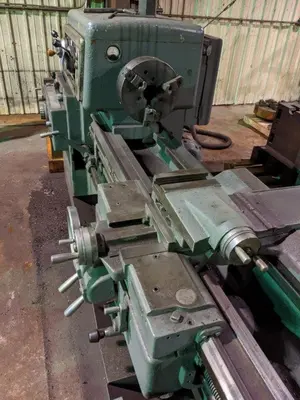

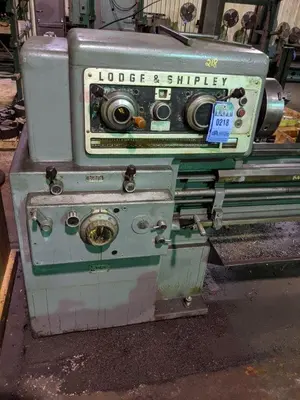

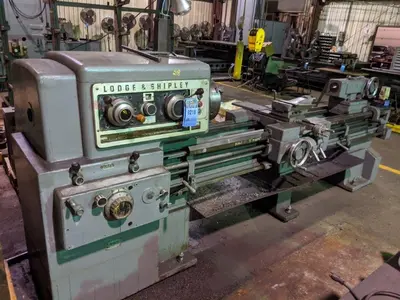

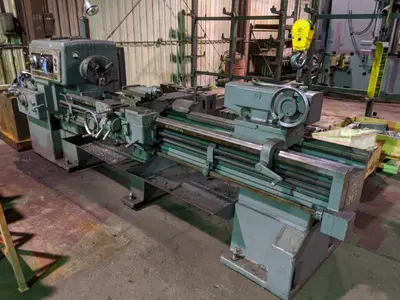

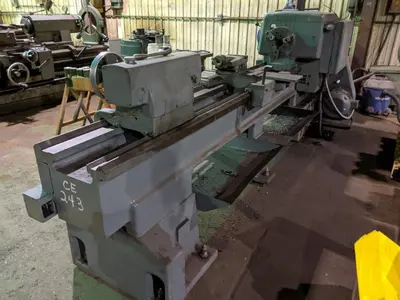

20" X 78" LODGE & SHIPLEY "2013 POWERTURN" ENGINE LATHE w/12” 3-JAW CHUCK

Hole Thru Spindle . . . . . . . . . 2"

Swing Over Bed Ways, Rated . . . . . . . . . 20"

Swing Over Bed Ways, Actual . . . . . . . . . 20.5"

Swing Over Carriage Wings . . . . . . . . . 20.5"

Swing Over Cross-Slide . . . . . . . . . 13"

Distance Between Centers . . . . . . . . . 78"

Cross-Slide Cross-Feed Travel . . . . . . . . . 13.75"

Tailstock, Spindle Diameter . . . . . . . . . 4"

Tailstock, Spindle Travel . . . . . . . . . 6.5"

Tailstock, Spindle Taper . . . . . . . . . #5 MT

(24) Spindle Speeds, Range . . . . . . . . . 14 to 1600 RPM

Carriage Longitudinal Feeds . . . . . . . . . .0007 to .469 IPR

(73) Thread Changes, Range . . . . . . . . . 1 to 256 TPI

Motor Horsepower/RPM . . . . . . . . . 15 HP/1750 RPM

Electrical System . . . . . . . . . 230/460/3/60

Overall Dimensions, L x D . . . . . . . . . 13'4" x 5'1"

Weight, Approximately . . . . . . . . . 9200 LBS

F.O.B. OUR WAREHOUSE
Hole Thru Spindle: 2"
Swing Over Carriage Wings: 20.5"
Swing Over Cross-Slide: 13"
Distance Between Centers: 78"
Cross-Slide Cross-Feed Travel: 13.75"
Tailstock, Spindle Diameter: 4"
Tailstock, Spindle Travel: 6.5"
Tailstock, Spindle Taper: #5 MT
(24) Spindle Speeds, Range: 14 to 11600 RPM
Carriage Longitudinal Feeds: 0007 to .469 IPR
(73) Thread Changes, Range: 1 to 256 TPI
Motor Horsepower/RPM: 15 HP/1750 RPM
Electrical System: 230/460/3/60
Weight, Approximately: 9200 LBS
