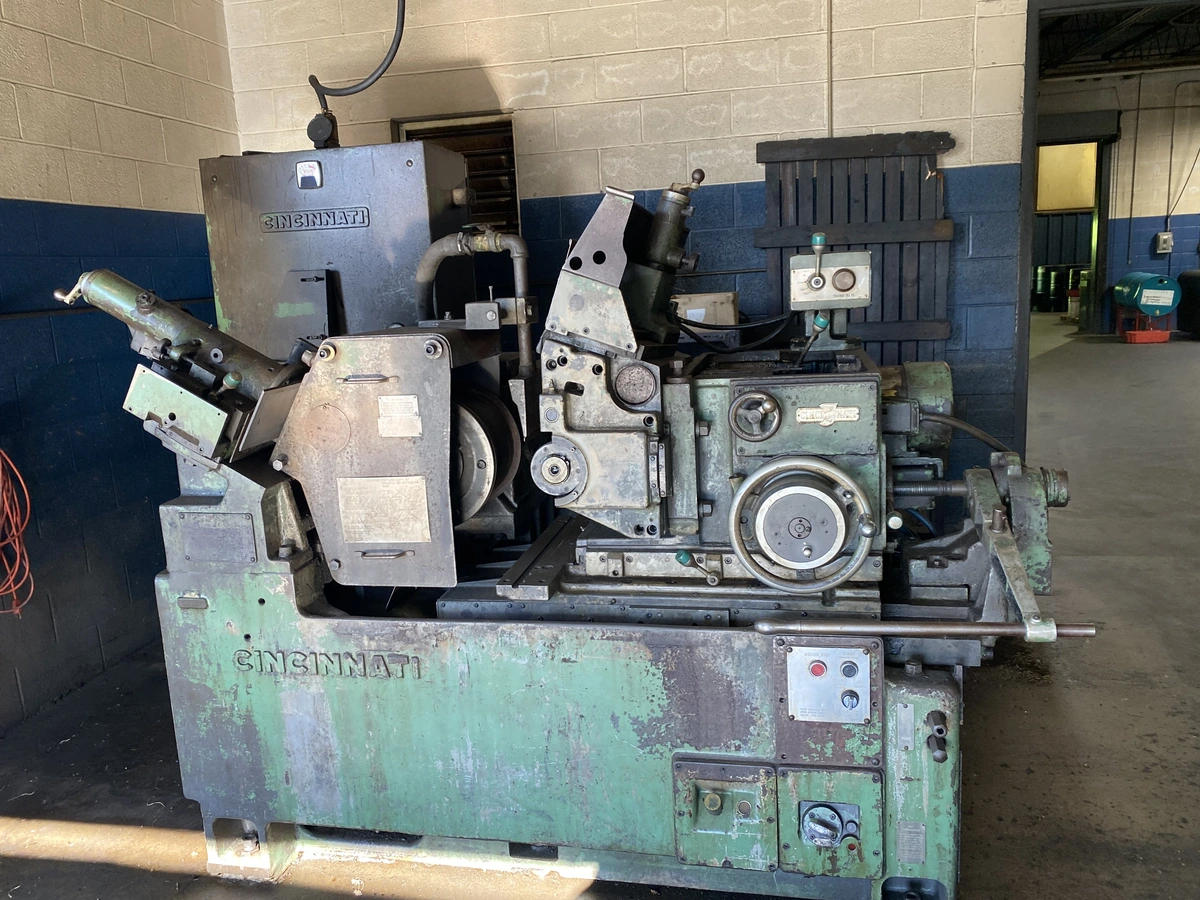

220-8 CINCINNATI-MILACRON "LR" CENTERLESS GRINDER w/MANUAL INFEED - HYDRAULIC TRUING

Diameter Capacity, Nominal .......... 0" to 3"

Diameter Capacity, Maximum .......... 4.5"

Grinding Wheel Diameter, Minimum .......... 15"

Grinding Wheel Diameter, Maximum .......... 20"

Grinding Wheel Width, Maximum .......... 8"

Grinding Wheel Hole Diameter .......... 12"

Regulating Wheel Diameter, Minimum .......... 9.75"

Regulating Wheel Diameter, Maximum .......... 13"

Regulating Wheel Width, Maximum .......... 8"

Regulating Wheel Hole Diameter .......... 5"

Regulating Wheel Speeds, Low Range .......... 15 to 56 RPM

Regulating Wheel Speeds, High Range .......... 56 to 300 RPM

Grinding Wheel Motor, Horsepower .......... 20 HP

Regulating Wheel Motor, Horsepower .......... 1.5 HP

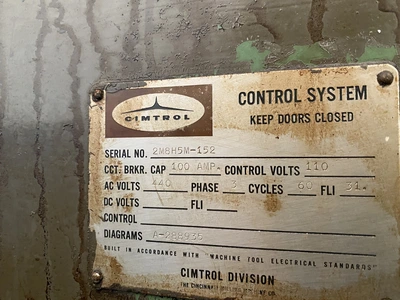

Electrical System .......... 220-440/3/60

Floor Space Required, W x D .......... 10'10" x 7'11"

Weight, Approximately .......... 13000 LBS

NOTE: Missing outboard support for regulating spindle wheel.

F.O.B. OUR WAREHOUSE
Diameter Capacity, Nominal: 0" to 3"
Diameter Capacity, Maximum: 4.5"
Grinding Wheel Diameter, Minimum: 15"
Grinding Wheel Diameter, Maximum: 20"
Grinding Wheel Width, Maximum: 8"
Grinding Wheel Hole Diameter: 12"
Regulating Wheel Diameter, Minimum: 9.75"
Regulating Wheel Diameter, Maximum: 13"
Regulating Wheel Width, Maximum: 8"
Regulating Wheel Hole Diameter: 5"
Grinding Wheel Motor, Horsepower: 20 HP
Regulating Wheel Motor, Horsepower: 1.5 HP
Electrical System: 220-440/3/60
Weight, Approximately: 13000 LBS
