2 CINCINNATI-MILACRON "LO" CENTERLESS GRINDER w/MANUAL INFEED - HYDRAULIC WHEEL TRUING

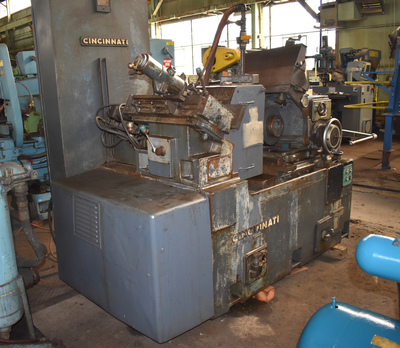

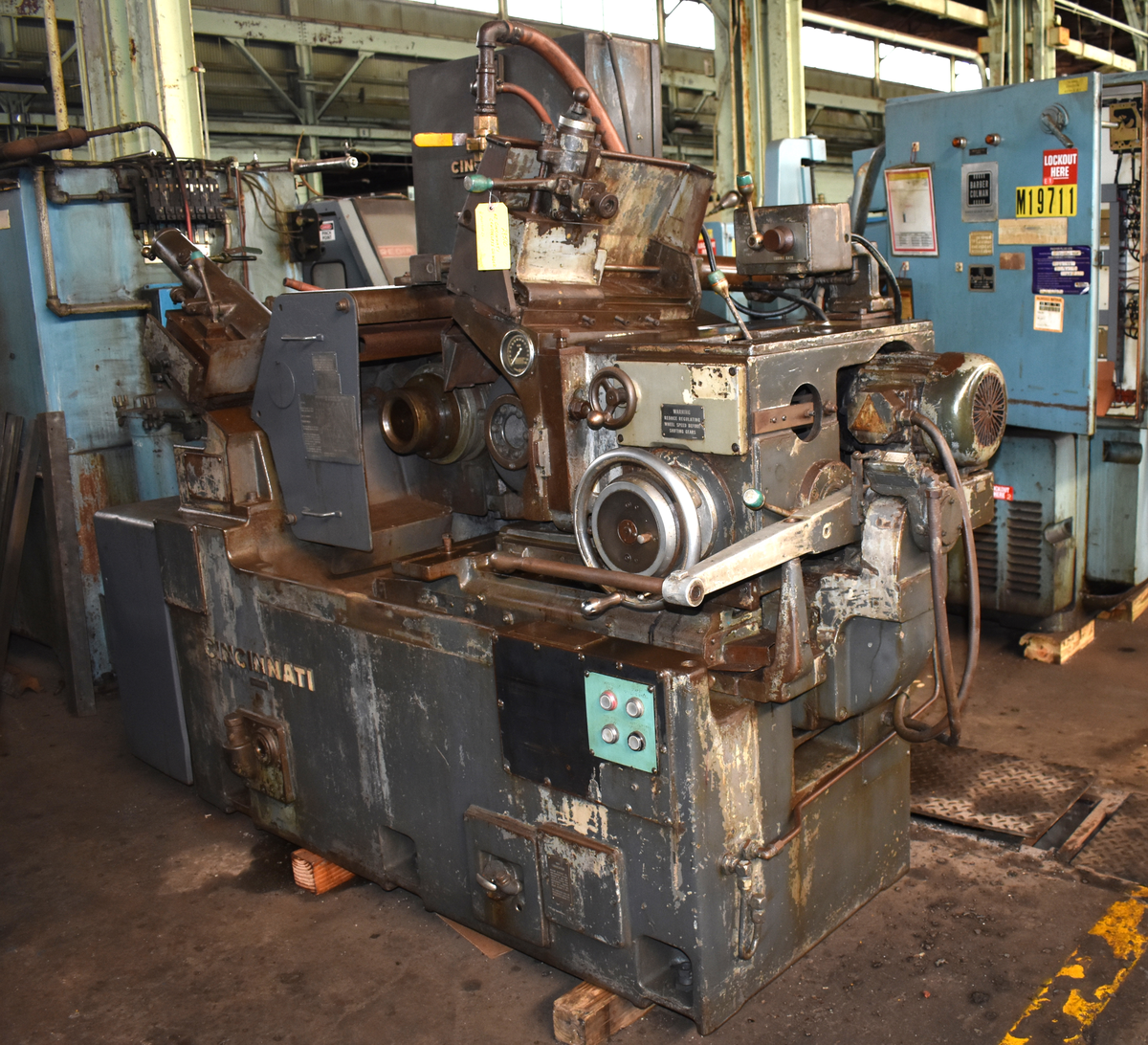

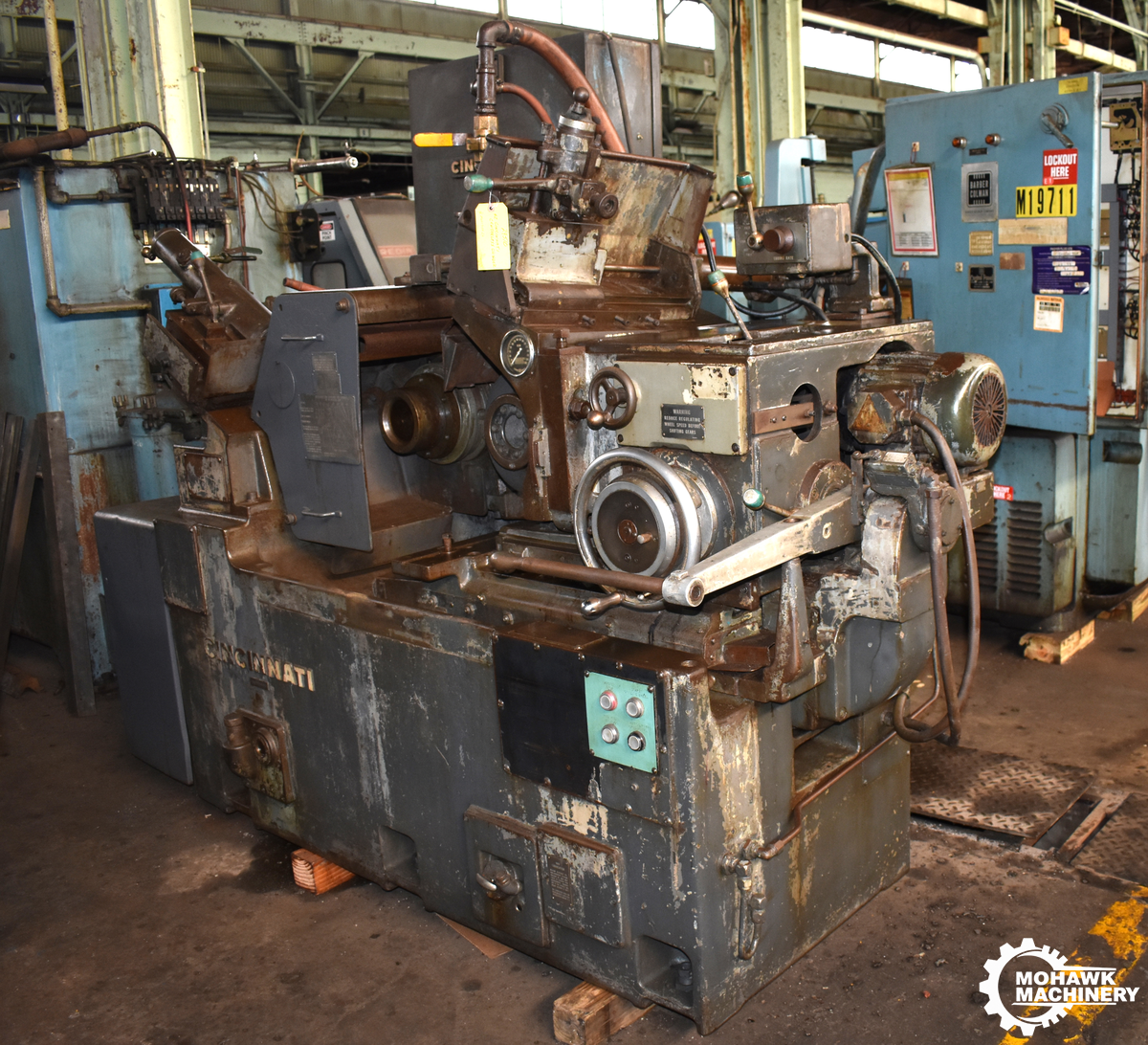

#2 CINCINNATI-MILACRON CENTERLESS GRINDER
Serial No 2M2HCD5H-26, Model 2, Ltr LO,

EQUIPPED WITH:
Hand Regulating Wheel Slide Infeed Unit
Hydraulic Grinding Wheel Profile Diamond Truing
Hydraulic Regulating Wheel Profile Diamond Truing
Automatic Grinding Wheel Balancing
Bijur One-Shot Lubrication System
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Diameter Capacity, Nominal .......... .06" to 3"
Diameter Capacity, Maximum .......... 4.75"
Grinding Wheel Diameter, Maximum .......... 20"
Grinding Wheel Width, Maximum .......... 8"
Grinding Wheel Hole Diameter .......... 12"
Regulating Wheel Diameter, Minimum .......... 9.5"
Regulating Wheel Diameter, Maximum .......... 12"
Regulating Wheel Width, Maximum .......... 8"
Regulating Wheel Hole Diameter .......... 5"
Regulating Wheel Speeds, Low Range .......... 11 to 60 RPM
Regulating Wheel Speeds, High Range .......... 54 to 320 RPM
Grinding Wheel Motor, Horsepower .......... 20 HP
Overall Dimensions, W x D .......... 7'7" x 5'9"
Weight, Approximately .......... 9300 LBS
F.O.B. OUR WAREHOUSE
Diameter Capacity, Nominal: 06" to 3"
Diameter Capacity, Maximum: 4.75"
Grinding Wheel Diameter, Maximum: 20"
Grinding Wheel Width, Maximum: 8"
Grinding Wheel Hole Diameter: 12"
Regulating Wheel Diameter, Minimum: 9.5"
Regulating Wheel Diameter, Maximum: 12"
Regulating Wheel Width, Maximum: 8"
Regulating Wheel Hole Diameter: 5"
Grinding Wheel Motor, Horsepower: 20 HP
